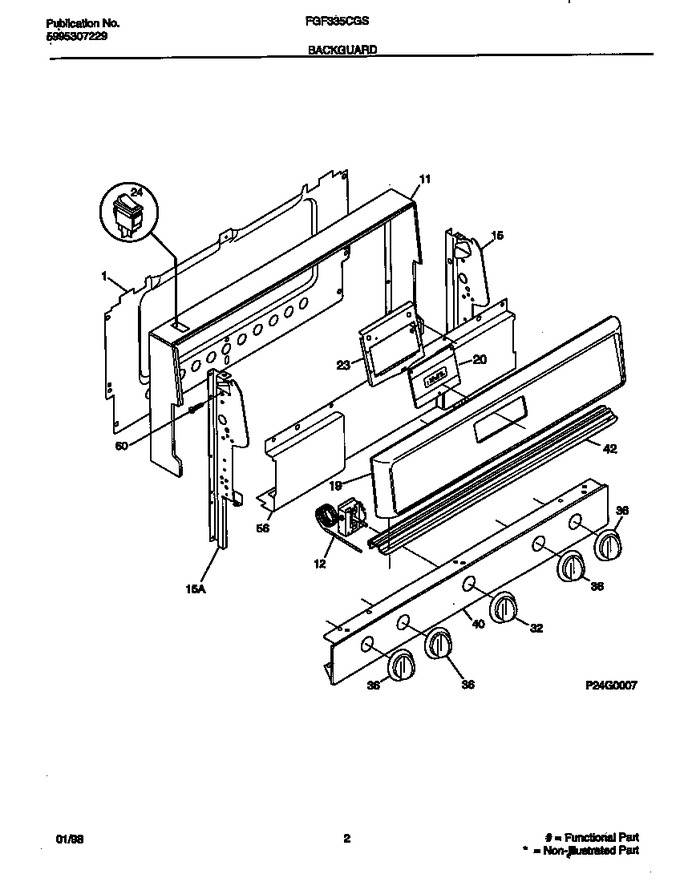

1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316083723		Trim-wrapper Gas Almond W/hole,almond		Appelez-nous	-
12	316032411		Thermostat-oven   (Replaces: 5303271464)			Immediately	$ 165.14
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100533		Panel-bg G Beta Tl Fr Alm Cm,almond		Appelez-nous	-
20	316097901		Clock/timer, Electronic		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
24	316005608		Switch-rocker,oven Light ,almond		Appelez-nous	-
32	316053603		Knob-thermostat Alm Gas,almond		Appelez-nous	-
36	316049306		Knob-top Valve, Almond, (4)		Appelez-nous	-
40	316086833		Panel-manifold,almond		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*23081	316098003		Overlay-t.o.d. Almond,almond		Appelez-nous	-
*23082	316002989		Instructions,installation		Appelez-nous	-
*23083	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*23084	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*23085	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
