SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body

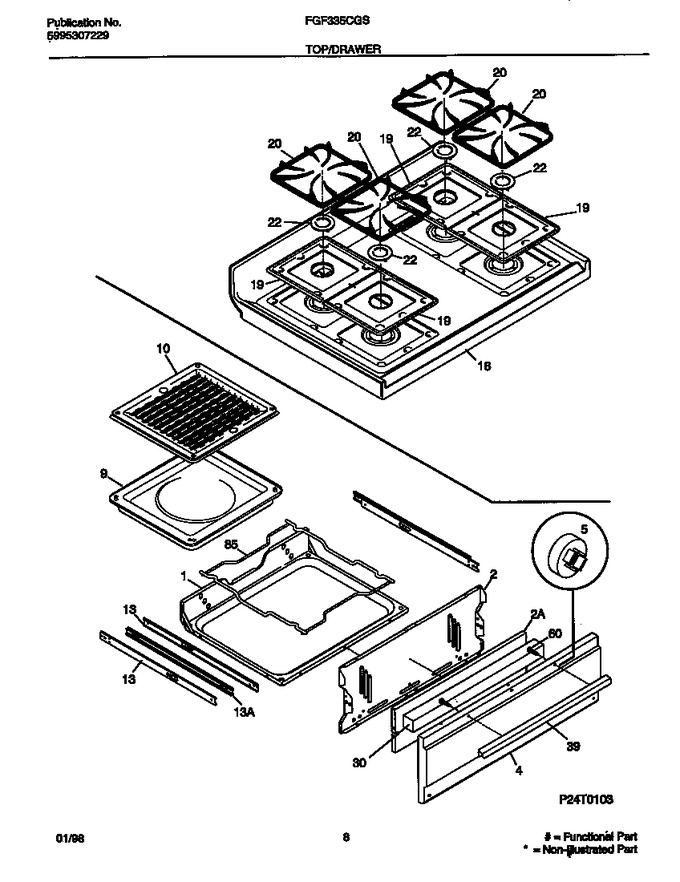

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110401		Carriage,broiler		Appelez-nous	-
2	316110101		Liner-low Broil		Appelez-nous	-
2	316110800		Shield,broiler		Appelez-nous	-
4	316056202		Panel-drawer,almond		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
16	5303301547		Main Top, Almond		Appelez-nous	-
19	316011410		Pan-burner,almond ,(4)		Appelez-nous	-
20	316085304		Grate, (4)		Appelez-nous	-
22	316098508		Cap Burner Gray Glo,gray		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316026107		Handle-drawer,almond		Appelez-nous	-
60	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
85	316110500		Rack,warmer Drawer		Appelez-nous	-
*23103	316021113		Screw-drawer Pnl		Appelez-nous	-
*23104	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*23105	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*23106	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*23107	5303288574		Screw, Truss Head, 8-10 X 0.375, Handle, (3)		Appelez-nous	-
10A	5303131356		Insert-broiler Pan		Appelez-nous	-
10B	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96

    View Diagram in Separate Window       Print Part List
