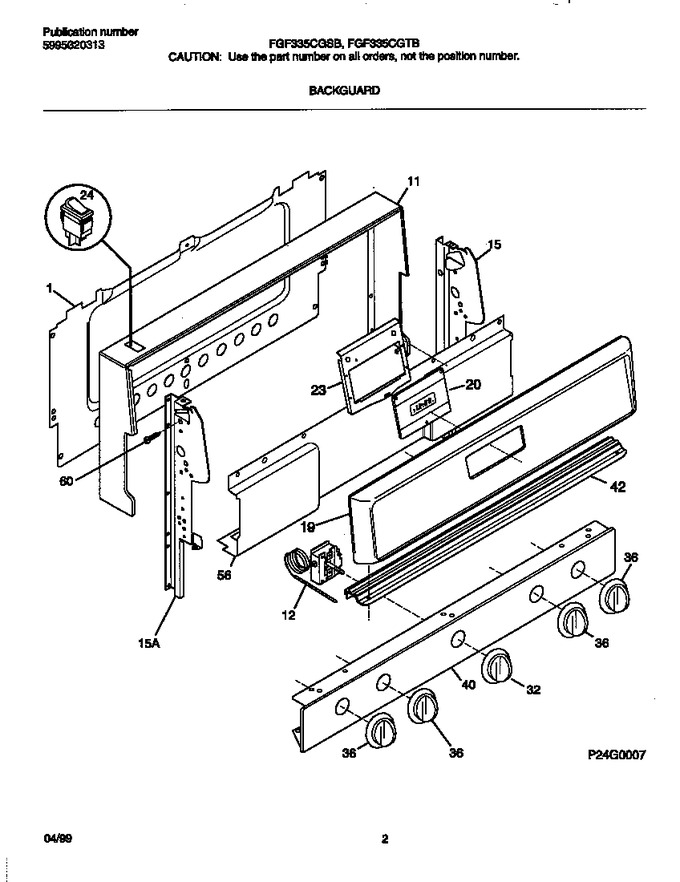

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
11	316083723		Trim-wrapper Gas Almond W/hole,almond		Appelez-nous	-
12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100533		Panel-bg G Beta Tl Fr Alm Cm,almond		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
24	316005608		Switch-rocker,oven Light ,almond		Appelez-nous	-
32	316109510		Knob Thermostat				$ 71.56
36	316109504		Knob-top Valve, Almond		Appelez-nous	-
40	316086833		Panel-manifold,almond		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*33080	316002989		Instructions,installation		Appelez-nous	-
*33081	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*33082	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*33084	316098003		Overlay-t.o.d. Almond,almond		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
