SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body

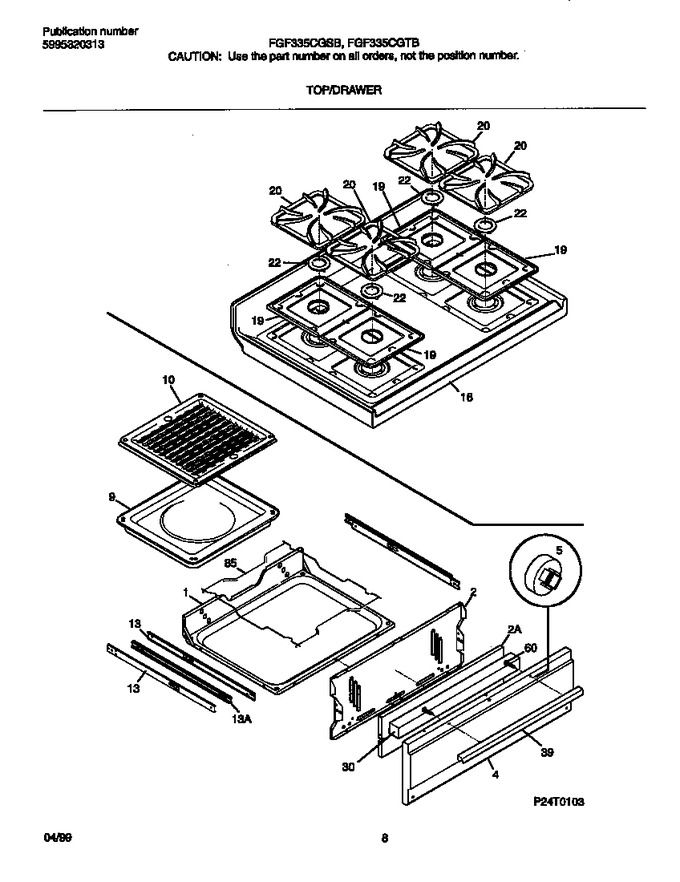

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110800		Shield,broiler		Appelez-nous	-
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056202		Panel-drawer,almond		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
13	316111500		Glide-drawer,outer		Appelez-nous	-
13	316111501		Glide-low Broil,outer		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
16	5303301547		Main Top, Almond		Appelez-nous	-
19	316011410		Pan-burner,almond ,(4)		Appelez-nous	-
20	316085304		Grate, (4)		Appelez-nous	-
22	316098508		Cap-burner,small ,gloss Gray		Appelez-nous	-
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316026107		Handle-drawer,almond		Appelez-nous	-
60	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
85	316110500		Rack,low Broil		Appelez-nous	-
*33096	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*33097	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*33099	316021113		Screw-8-18x1/2 Tr Sqd Almond		Appelez-nous	-
*33100	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62

    View Diagram in Separate Window       Print Part List
