SELECT A DIAGRAM
01 - Cover
03 - Backguard

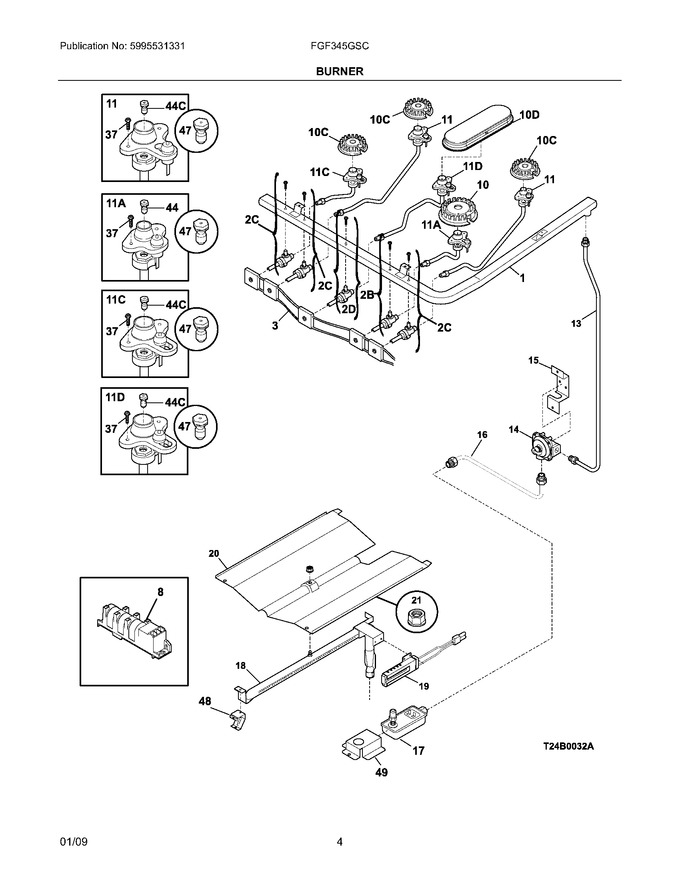

05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 808608804 | Module,spark (Replaces: 318079001) |
|
Immediately | $ 76.06 | ||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 20 | 316496001 | Baffle,oven Burner |
|
$ 78.33 | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 37 | 316240600 | Screw,assy Mtg ,(8) ,ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 44 | 316237901 | Orifice,top Burner ,12k |
|
$ 64.46 | |||||
| 47 | GRLP3 | Lp Conversion Kit,w/instructions |
|
$ 57.11 | |||||
| 48 | 3018603 | Bracket,support ,oven Burner |
|
- | |||||
| 49 | 316416300 | Bracket,safety Valve |
|
- | |||||
| 2B | 316536001 | Valve-top Burner,12k |
|
$ 83.42 | |||||
| 44C | 316237902 | Orifice,top Burner ,9.5k |
|
$ 65.22 | |||||
| F1 | 316219501 | Pipe,manifold |
|
$ 121.70 | |||||
| F10 | 316212300 | Burner,sealed ,12k |
|
$ 105.95 | |||||
| F10C | 316212400 | Burner,sealed ,9.5k |
|
Immediately | $ 32.62 | ||||
| F10D | 316532001 | Burner,sealed ,oval ,9.5k |
|
$ 288.60 | |||||
| F11 | 316237704 | Ignitor/orifice Assy.,top Burner ,rear ,9.5k,w/holder ,tube |
|
$ 132.71 | |||||
| F11A | 316430501 | Ignitor/orifice Assy.,top Burner ,right Front,12k ,w/holder ,tube |
|
- | |||||
| F11C | 316237805 | Ignitor/orifice Assy.,top Burner ,front |
|
$ 132.71 | |||||
| F11D | 316532601 | Ignitor/orifice Assy.,top Burner ,center,9.5k ,w/holder-tube |
|
$ 123.62 | |||||
| F13 | 316207000 | Tube,3/8 `aluminum ,rgltr To Manf ,with Fittings |
|
$ 96.55 | |||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| F16 | 316065006 | Tube-valve To Rgltr,3/8 (Replaces: 316436500) |
|
$ 122.09 | |||||
| F17 | 3203459 | Valve-safety |
|
$ 303.64 | |||||
| F18 | 316114300 | Burner,oven |
|
$ 169.88 | |||||
| F19 | 5304509706 | Ignitor,oven Kit ,w/nut & Instr (Replaces: 316489402) |
|
Immediately | $ 189.59 | ||||
| F2C | 316536000 | Valve-top Burner,9.5k |
|
Immediately | $ 72.05 | ||||
| F2D | 316536007 | Valve-top Burner,tortilla |
|
- | |||||
| F3 | 316219018 | Wiring Harness,w/igntr Switch |
|
- | |||||
| FNI | 316253702 | Wiring Harness,ignitor Module |
|
$ 113.30 | |||||
| FNI | 316064103 | Wire,ground Assembly |
|
- | |||||
| NI | 316248105 | Instructions,lp Kit |
|
- | |||||
| NI | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| NI | 316021104 | Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt |
|
$ 7.79 | |||||
| NI | 5303271648 | Screw,wafer Hd Sq Dr ,8-18ab X 0.5 |
|
Immediately | $ 13.46 |
