SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

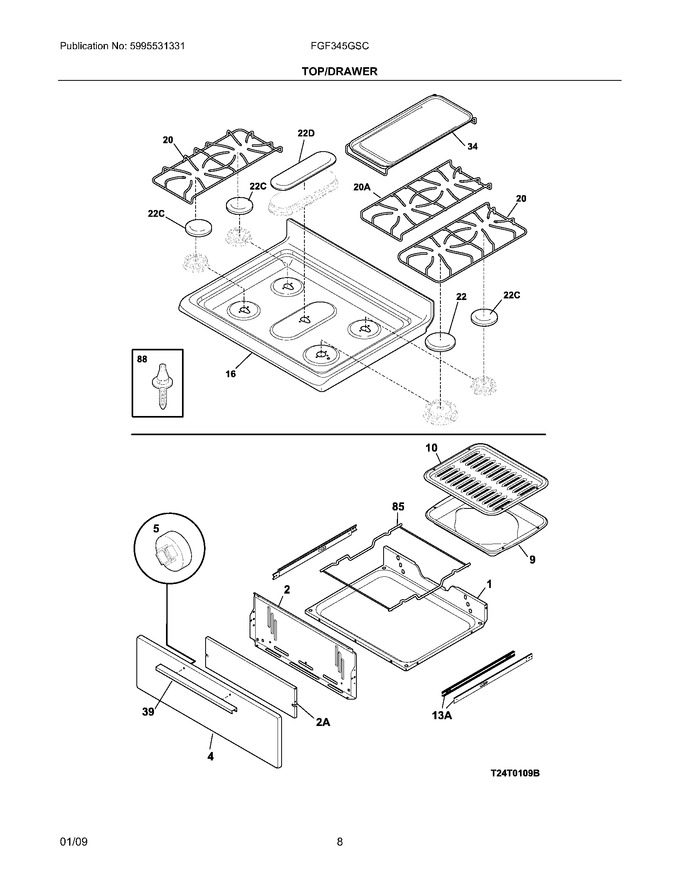

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage,low Broil				$ 232.57
2	316236401		Liner,low Broil				$ 119.96
4	316231211		Panel-drawer,white				$ 51.92
5	316129100		Fastener,push-in Nut ,nylon ,spacer		Appelez-nous	-
9	316081902		Pan,broiler ,slate Blue				$ 83.42
10	316082002		Insert,broiler Pan ,slate Blue				$ 81.14
16	316411256		Maintop,white		Appelez-nous	-
20	316531500		Grate,(2)		Appelez-nous	-
22	316213600		Cap,12k Burner ,black				$ 130.08
34	316531600		Griddle		Appelez-nous	-
39	316019511		Handle,drawer ,white				$ 109.36
85	316115600		Rack-low Broil				$ 105.47
88	316099500		Pin,guide ,(2)				$ 6.53
13A	316534200		Glide-low Broil, Inner				$ 42.75
20A	316531400		Grate,center ,black ,(1)		Appelez-nous	-
22C	316213500		Cap,9.5k Burner ,black				$ 43.23
22D	316532101		Cap,9.5k Burner ,oval ,black ,center				$ 106.52
2A	316541500		Shield,broiler				$ 61.37
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw,shoulder Head ,8-18 X 5/8 ,(2) ,square Drive				$ 13.28

    View Diagram in Separate Window       Print Part List
