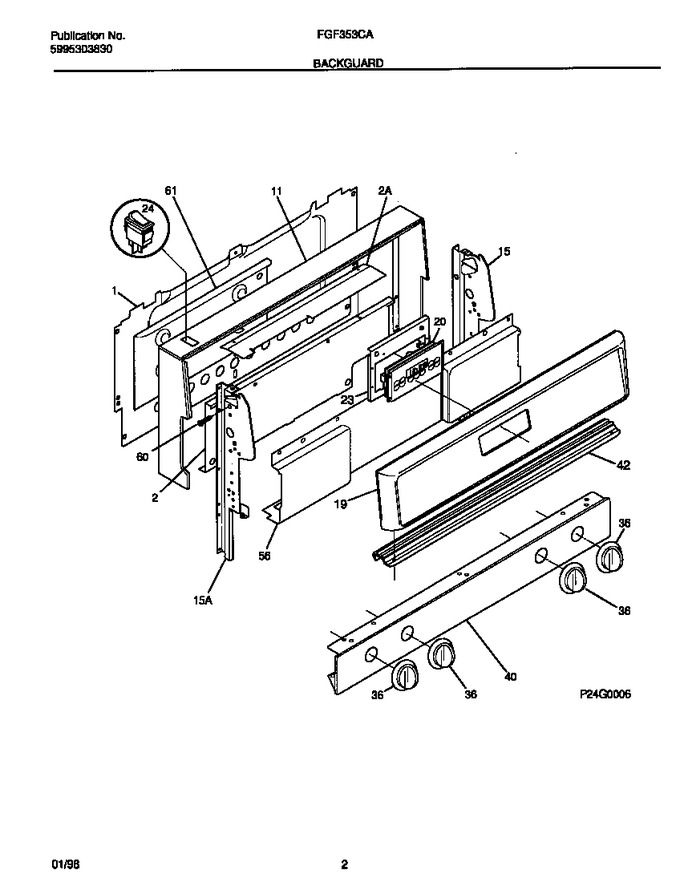

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
2	316053800		Shield-backguard, Inner Top		Appelez-nous	-
11	316083702		Trim-wrapper		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316024433		Panel-control, Metal		Appelez-nous	-
20	5303935111		Clock/timer, Eoc, White, With Overlay		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light, White   (Replaces: 316005607)			Immediately	$ 16.13
36	316049302		Knob-top Valve, (4)		Appelez-nous	-
40	316009285		Panel-manifold		Appelez-nous	-
42	316055201		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*77800	316001419		Harness-wiring, Backguard		Appelez-nous	-
*77801	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
