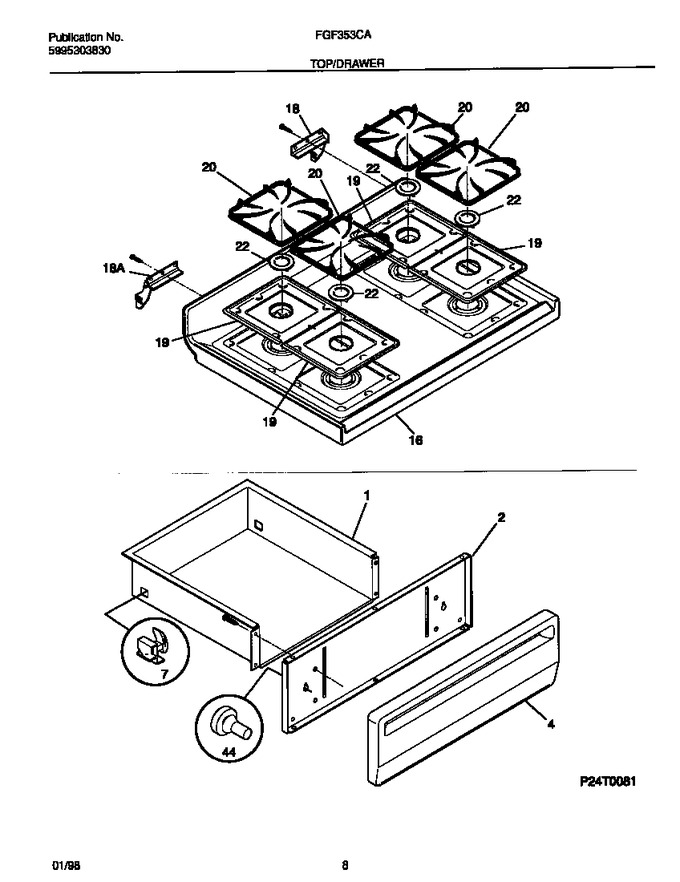

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303301546		Main Top, White		Appelez-nous	-
19	316011409		Pan-burner, Gray, (4)				$ 153.83
20	316085304		Grate, (4)		Appelez-nous	-
22	316011003		Cap-burner, Gray, Small, (2)		Appelez-nous	-
44	3131903		Bumper				$ 55.36
*77817	316021109		Screw-drawer Pnl   (Replaces: 316021112)			Immediately	$ 27.50
*77818	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*77819	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*77820	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
*77821	316089600		Spacer-drawer, (2)		Appelez-nous	-
*77822	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*77823	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
