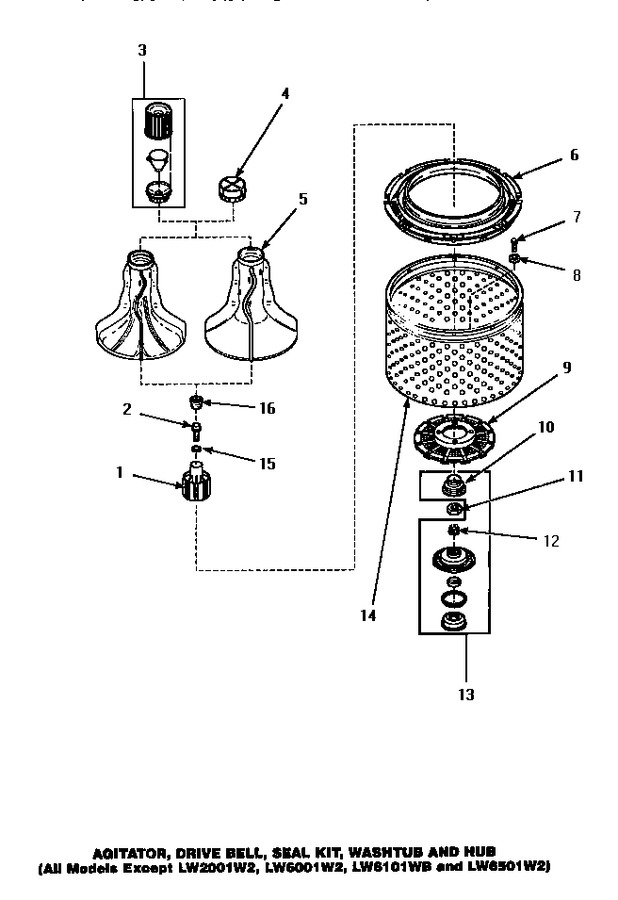

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Drive Bell		Appelez-nous	-
2	34288		Shoulder Screw		Appelez-nous	-
3	36542		Fabric Softener Dispenser			Immediately	$ 12.11
4	DE81-08574A		Cap, Agitator   (Replaces: 36515)				$ 109.32
5	36507		Agitator			Immediately	$ 52.19
6	35035		Guard, Clothes				$ 31.15
7	WPW10116787		Cap Screw   (Replaces: 27202)				$ 19.26
8	28094		Gasket		Appelez-nous	-
9	32998		Lint Filter		Appelez-nous	-
10	DE81-10150A		Seal   (Replaces: 36425)				$ 128.20
11	Y29220		Locknut		Appelez-nous	-
12	29728		Splined Insert			Immediately	$ 6.95
13	646P3A		Hub & Seal Kit   (Replaces: 495P3)				$ 313.62
14	33501P		Washtub Stainless Steel All		Appelez-nous	-
15	36472		O-ring				$ 23.37
16	DE81-08662A		Plug   (Replaces: 36511)				$ 28.04
NI	39508P		Drive Bell & Seal Kit   (Replaces: 36443P)			Immediately	$ 45.90
