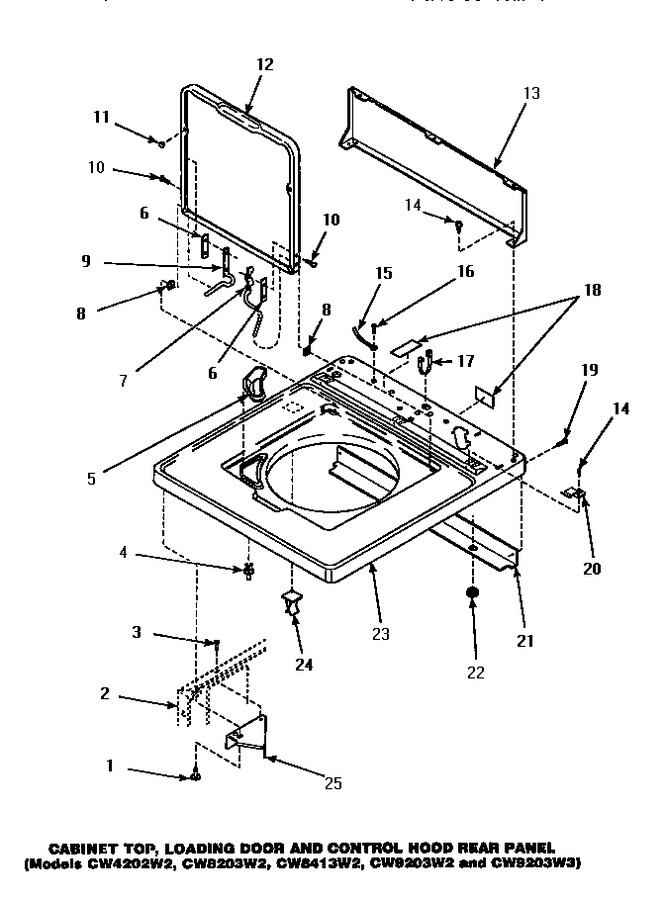

CW9203W2 (BOM: PCW9203W2 A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WP27001200	Screw,10-24t X 3/4 Sem (Replaces: Y31644)			$ 6.91
2	Y00000000	See Note Cabinet Assy -- (see Front Panel, Base And Cabinet Assy Page)	Appelez-nous	-
3	DE81-05207A	Screw,8-18x3/8 Phil Flt Hd (Replaces: 36035)			$ 67.62
4	56534	Barrel,support	Appelez-nous	-
5	34776	Dispenser,bleach			$ 14.04
6	34338	Gasket,hinge			$ 9.22
7	DE81-10050A	Hinge, Lid R (Replaces: 36437)			$ 33.80
8	33446	Bushing		Immediately	$ 6.95
9	36513	Hinge, Left			$ 16.85
10	WPW10119828	Screw (Replaces: 34337)		Immediately	$ 6.47
11	21685	Bumper		Immediately	$ 6.95
12	36018WP	Assy,lid-amana Electronic	Appelez-nous	-
13	34903	Panel, Back Hood (use 37782)	Appelez-nous	-
14	WP90767	Screw,8b-18 X 3/8 Ind (Replaces: 23962)		Immediately	$ 7.04
15	Y00000000	See Note Ground Wire	Appelez-nous	-
16	Sub. To D513139P	Screw,10b-16 X 1/2 Hex (Replaces: 52909)	Appelez-nous	-
17	21903	Strain Relief	Appelez-nous	-
18	500316	Label,warning-disconnect Power	Appelez-nous	-
19	WP27001200	Screw (Replaces: 27196)			$ 6.91
20	35887	Hold-down Clip	Appelez-nous	-
21	34228	Shield, Top	Appelez-nous	-
22	80262	Grommet			$ 1.58
23	34902WP	Assy,top-amana	Appelez-nous	-
24	36519	Clip			$ 6.95
25	36034	Bracket,director-module	Appelez-nous	-
