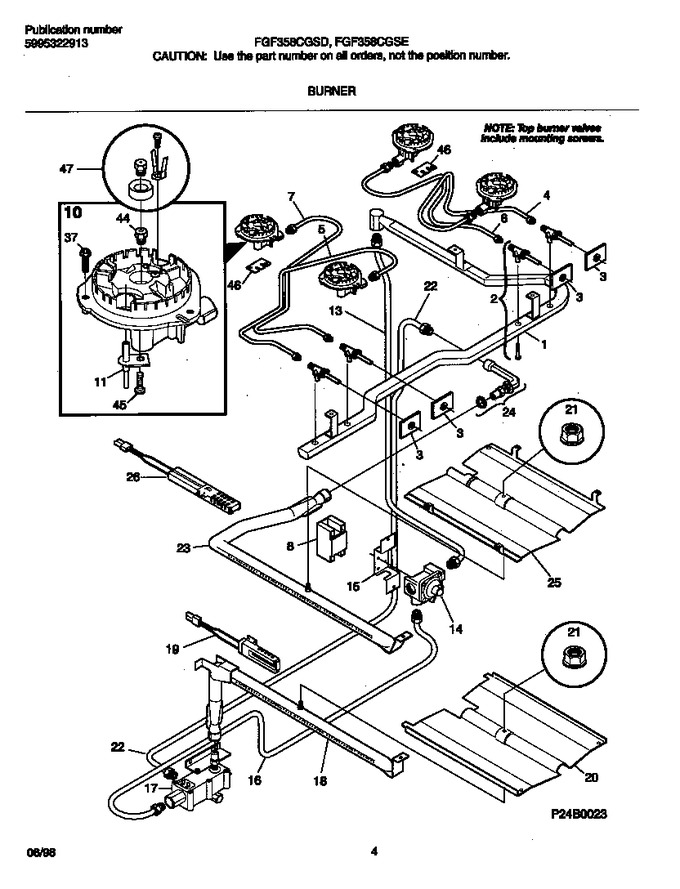

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316113801 | Manifold-pipe |
|
- | |||||
| 2 | 5303935130 | Valve-top Burner |
|
$ 155.93 | |||||
| 3 | 316103600 | Switch-ignitor,(4) |
|
- | |||||
| 4 | 316059612 | Tube-burner, Red, Rf |
|
$ 88.25 | |||||
| 5 | 316059613 | Tube-burner, Green, Lf |
|
$ 87.16 | |||||
| 6 | 316059614 | Tube-burner, Nat., Rr |
|
$ 125.06 | |||||
| 7 | 316059615 | Tube-burner, Black, Lr |
|
$ 106.32 | |||||
| 8 | 5304505695 | Spark Module (Replaces: 5303280394) |
|
Immediately | $ 68.16 | ||||
| 10 | 5303935025 | Burner Assy-top,sealed ,small ,9000 Btu |
|
- | |||||
| 11 | 316011200 | Ignitor,top Burner ,(4) ,w/mtg Bracket |
|
Immediately | $ 38.68 | ||||
| 13 | 316065005 | Tube, Aluminum, Rgltr To Manf, With Fittings |
|
$ 91.51 | |||||
| 14 | 5304521339 | Regulator,pressure (Replaces: 316091706) |
|
Immediately | $ 105.42 | ||||
| 15 | 316091600 | Bracket-regulator |
|
$ 73.56 | |||||
| 16 | 316065003 | Tube-valve To Regulator,3/8 |
|
$ 126.42 | |||||
| 17 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| 18 | 3131290 | Burner-oven |
|
- | |||||
| 19 | 5303935066 | Ignitor-oven |
|
Immediately | $ 59.58 | ||||
| 20 | 3131284 | Baffle-oven Burner |
|
$ 155.77 | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 22 | 316065002 | Tube-valve To Mixer |
|
$ 80.90 | |||||
| 23 | 316087900 | Burner-broiler |
|
- | |||||
| 24 | 316070400 | Mixer Elbow |
|
- | |||||
| 25 | 5303210379 | Baffle-broiler |
|
$ 175.88 | |||||
| 26 | 5303935068 | Ignitor-broiler (Replaces: 5308067970) |
|
$ 166.55 | |||||
| 37 | 316069301 | Screw,burner Mtg |
|
$ 2.99 | |||||
| 44 | 5303210090 | Orifice-top Burner, Small |
|
$ 54.18 | |||||
| 45 | 316011100 | Screw-ignitor Mtg, Self-tapping, M3 X 5.8 |
|
$ 3.41 | |||||
| 46 | 316074700 | Plate-burner Tube |
|
- | |||||
| 47 | 5303286386 | Lp-conversion Kit |
|
$ 143.29 | |||||
| *34926 | 5303271648 | Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2 |
|
Immediately | $ 13.46 | ||||
| *34927 | 316048200 | Screw-,hex Washer Head ,1/4-20 X 0.31 ,w/gasket |
|
- | |||||
| *34928 | 5303289034 | Harness-wiring, Module/igniter |
|
$ 188.84 | |||||
| *34929 | 316021104 | Screw-regulator/brkt,hex ,8-18 X 3/8 ,nick, 3 |
|
$ 7.79 |
