SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

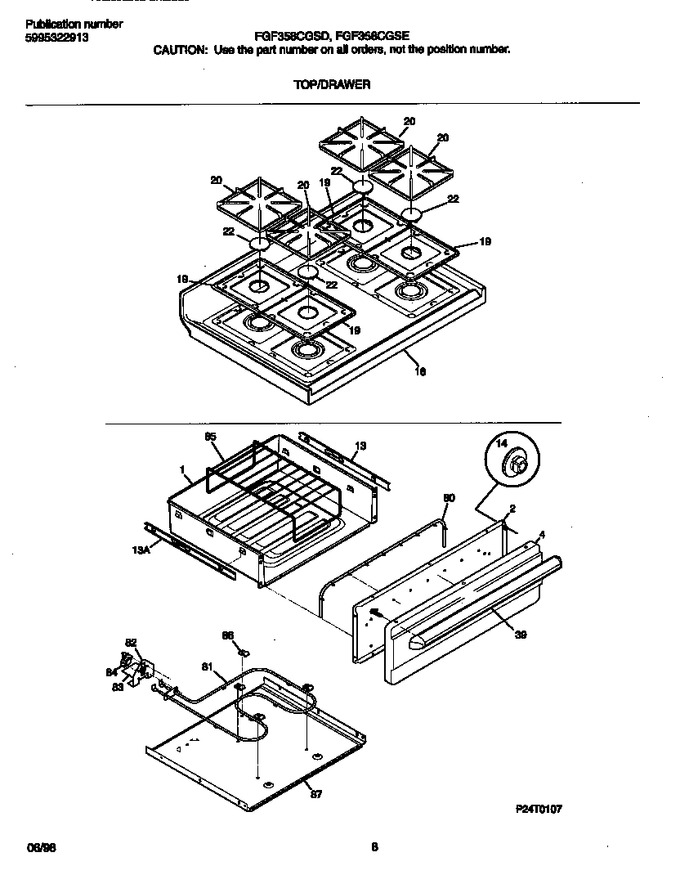

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316115901		Drawer,warmer		Appelez-nous	-
2	316092901		Liner, Drawer		Appelez-nous	-
4	316056201		Panel-drawer,white		Appelez-nous	-
13	318259507		Glide-drawer, Inner, Lh   (Replaces: 316105601)			Immediately	$ 69.01
13	316105600		Glide-drawer,rear,rh		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303301546		Main Top, White		Appelez-nous	-
19	316011409		Pan-burner, Gray, (4)				$ 153.83
20	316085304		Grate, (4)		Appelez-nous	-
22	316122101		Cap-burner,gray ,(4)				$ 34.85
39	316026106		Handle-drawer,white		Appelez-nous	-
80	316109700		Seal-door,warmer Drawer				$ 106.16
81	316093100		Element, Warmer Drawer		Appelez-nous	-
82	316093200		Bracket-mounting, Warmer Element		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093500		Thermo Disc,warmer Drawer				$ 138.39
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	316091900		Base-warmer				$ 221.55
*34933	316001917		Harness-warmer Drawer				$ 66.31
*34934	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*34935	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*34936	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
*34937	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62

    View Diagram in Separate Window       Print Part List
