01 - Body (cwe4020acb, Cwe4700acb)

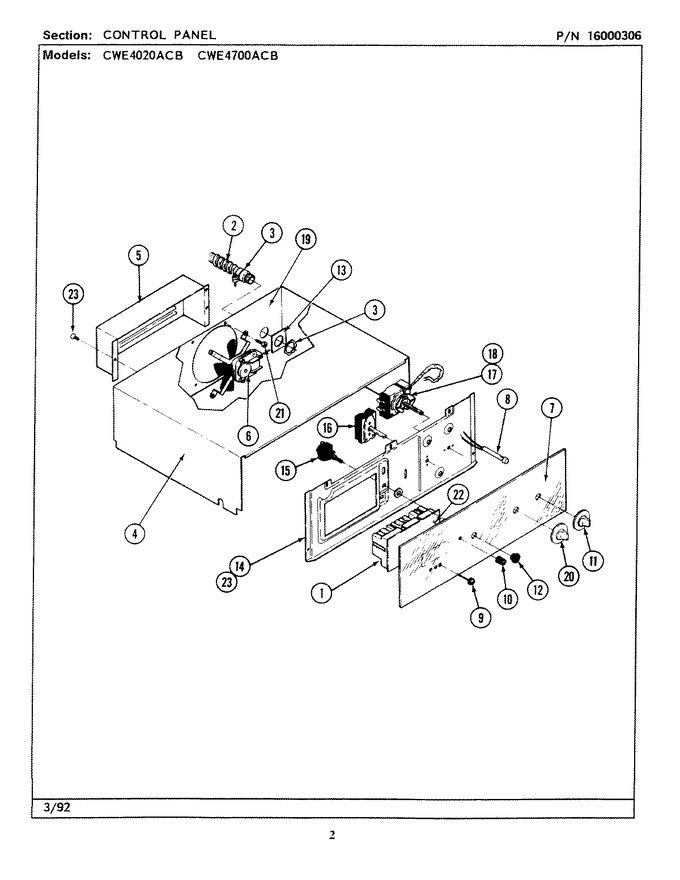

02 - Control Panel (cwe4020acb, Cwe4700acb)
03 - Door (cwe4020acb)
04 - Oven (cwe4020acb, Cwe4700acb)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7601P123-60K | Clock | 10 |
|
- | ||||
| 2 | 3414P037-44 | Conduit, Flexible | 10 |
|
- | ||||
| 3 | 7417P017-60 | Connector, Cable | 10 |
|
$ 9.81 | ||||
| 4 | 4005F150-51 | Cover, Wire | 10 |
|
- | ||||
| 5 | 4005F262-51 | Cover, Fan | 10 |
|
- | ||||
| 6 | 8008P004-60 | Grommet | 10 |
|
- | ||||
| 6 | 7427P006-60 | Fan Assembly | 10 |
|
- | ||||
| 7 | 8010P050-60 | Felt, Disc | 10 |
|
- | ||||
| 7 | 7902P223-60 | Glass, Control | 10 |
|
- | ||||
| 8 | 7417P004-60 | Connector, Right Ang | 10 |
|
- | ||||
| 8 | 5700A236-60 | Light, Indicator | 10 |
|
- | ||||
| 9 | 7711P171-60 | Knob, Clock (button-blk) | 10 |
|
$ 19.90 | ||||
| 10 | 7711P172-60 | Knob, Clock (blk) | 10 |
|
$ 23.55 | ||||
| 11 | 7735P001-60 | Knob, Thermostat (upr) | 10 |
|
- | ||||
| 12 | 7214P007-60 | Sleeve, Switch (blk) | 10 |
|
- | ||||
| 13 | 3605F131-51 | Plate, Reinforcement | 10 |
|
- | ||||
| 14 | 3605F170-80 | Plate, Switch | 10 |
|
- | ||||
| 15 | 7403P109-60 | Switch, Push (blk) | 10 |
|
- | ||||
| 16 | 7403P172-60 | Switch, Selector | 10 |
|
- | ||||
| 17 | 7404P049-60 | Thermostat, Oven | 10 |
|
$ 113.60 | ||||
| 17 | 7101P279-60 | Screw W/washer | 10 |
|
- | ||||
| 18 | 7101P280-60 | Screw W/washer (blk) | 10 |
|
- | ||||
| 19 | 3605F164-51 | Plate, Conduit | 10 |
|
- | ||||
| 20 | 7711P405-60 | Knob, Selector | 10 |
|
- | ||||
| 21 | 7101P079-60 | Screw | 10 |
|
- | ||||
| 22 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 10 |
|
$ 0.81 | ||||
| 23 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 10 |
|
Immediately | $ 6.85 |
