01 - Body (cwe4020acb, Cwe4700acb)
02 - Control Panel (cwe4020acb, Cwe4700acb)
03 - Door (cwe4020acb)

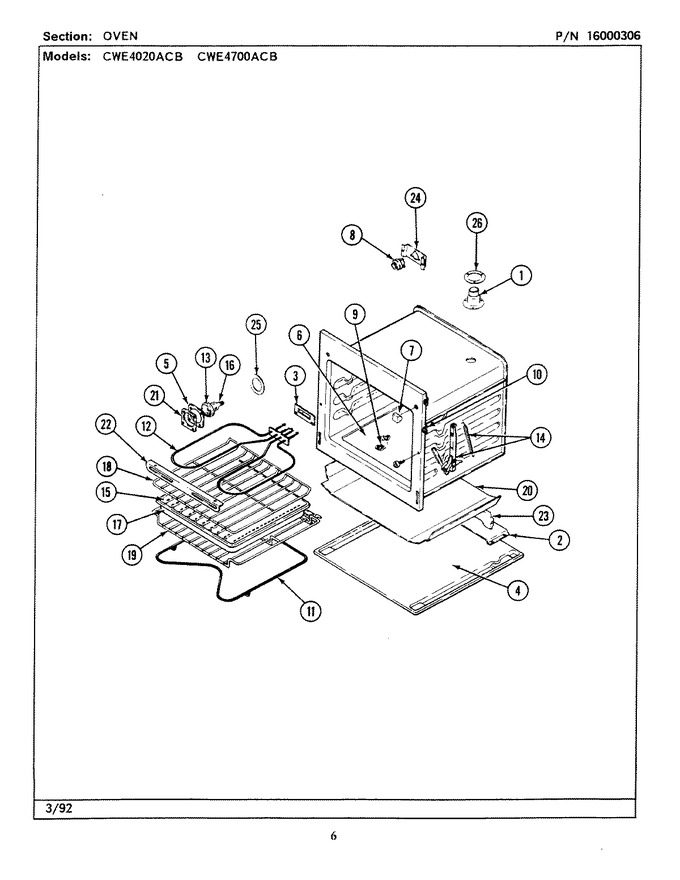

04 - Oven (cwe4020acb, Cwe4700acb)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3601F005-80 | Baffle, Base | 10 |
|
- | ||||
| 4 | WP7101P485-60 | Screw, Base (Replaces: 7101P084-60) | 10 |
|
$ 26.33 | ||||
| 4 | 4003F011-80 | Base, Wall Oven | 10 |
|
- | ||||
| 6 | 2205F003-23 | Bottom, Oven Upper | 10 |
|
- | ||||
| 7 | 8003P009-60 | Bumper, Door (square) | 10 |
|
- | ||||
| 8 | 7408P001-60 | Recept, Oven Light | 10 |
|
- | ||||
| 9 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 | |||
| 10 | 7112P020-60 | Clip, Oven Front | 10 |
|
- | ||||
| 11 | WPY04000066 | Element, Bake (Replaces: 7406P075-60) | 10 |
|
Immediately | $ 70.53 | |||
| 12 | WPY04000048 | Element, Broil (Replaces: 7406P076-60) | 10 |
|
$ 160.58 | ||||
| 14 | 7106A018-60 | Hinge, Oven Door | 10 |
|
- | ||||
| 15 | 4396923 | Tray Broiler Pan (Replaces: 3413F017-23) | 10 |
|
Immediately | $ 52.04 | |||
| 16 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 10 |
|
Immediately | $ 1.98 | |||
| 17 | 4396923 | Pan, Broil (Replaces: 3401F015-23) | 10 |
|
Immediately | $ 52.04 | |||
| 18 | 7801P005-60 | Rack | 10 |
|
- | ||||
| 19 | 7801P007-60 | Rack, Offset | 10 |
|
- | ||||
| 20 | 3804W034-51 | Retainer, Bottom | 10 |
|
- | ||||
| 20 | 7002P006-60 | Insulation, Bottom | 10 |
|
- | ||||
| 22 | 3807F176-15 | Support, Broil Element | 10 |
|
- | ||||
| 23 | 3807F137-80 | Support | 10 |
|
- |
