01 - Control Panel
02 - Door
03 - Oven/body
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

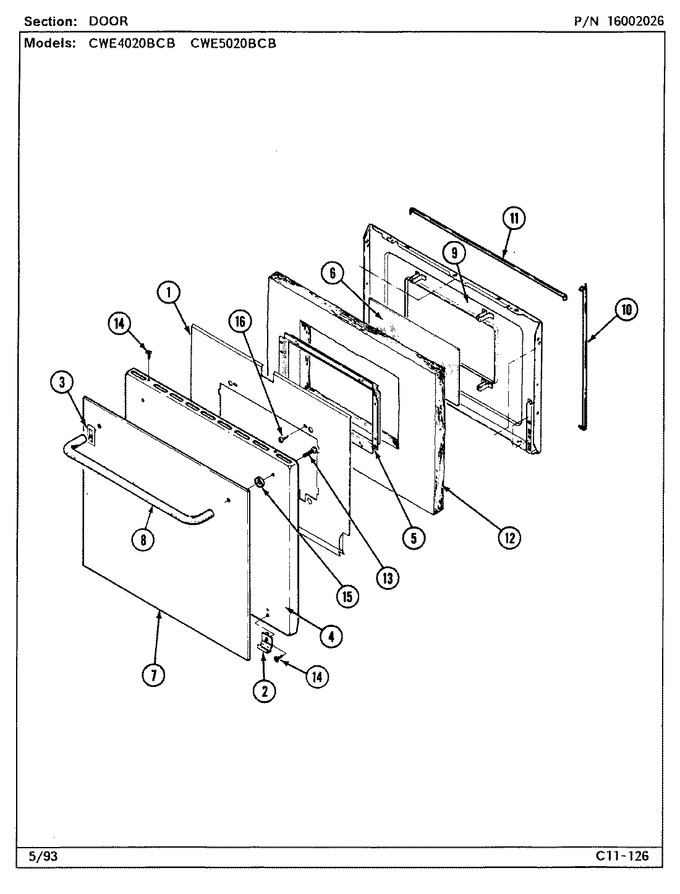

| 1 | 3601F102-51 | Baffle, Upper Door | 10 |
|
- | ||||
| 2 | 7112P093-60 | Clip, Glass (blk) | 10 |
|
$ 12.67 | ||||
| 3 | 8010P090-60 | Spacer, Handle (blk) | 10 |
|
- | ||||
| 4 | 2401F111-70 | Panel, Door (blk) | 10 |
|
- | ||||
| 5 | 3603F013-80 | Frame, Window----na | 10 |
|
- | ||||
| 6 | 7902P386-60 | Glass, Inner | 10 |
|
- | ||||
| 7 | 7902P357-60 | Glass, Door (blk) | 10 |
|
$ 99.18 | ||||
| 7 | 8270P065-60 | Tape | 10 |
|
- | ||||
| 8 | 7701P136-60 | Handle, Oven | 10 |
|
- | ||||
| 9 | 2402W133-19 | Lining, Door | 10 |
|
- | ||||
| 10 | 7212P003-60 | Seal, Oven Door | 10 |
|
$ 46.94 | ||||
| 11 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 10 |
|
$ 105.81 | ||||
| 12 | 7002P015-60 | Insulation, Door | 10 |
|
- | ||||
| 13 | WP3400074 | Screw (Replaces: 7101P068-60) | 10 |
|
$ 6.47 | ||||
| 14 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 15 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 10 |
|
$ 13.08 | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 10 |
|
Immediately | $ 6.85 |
