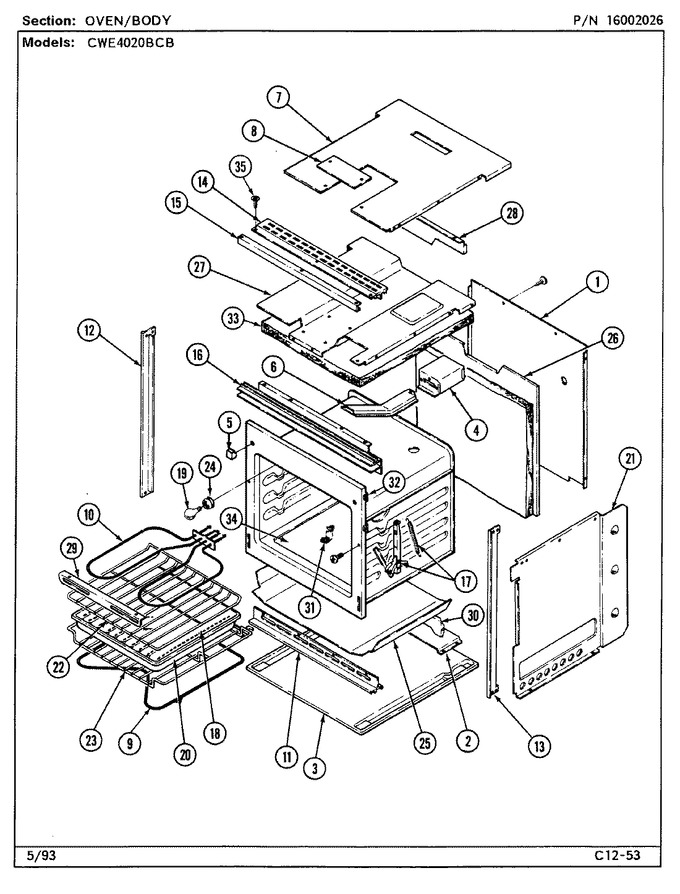

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door
03 - Oven/body
04 - Wiring Information
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F121-51 | Back, Main | 10 |
|
- | ||||
| 2 | 3601F005-80 | Baffle, Base | 10 |
|
- | ||||
| 3 | 4003F011-80 | Base, Wall Oven | 10 |
|
- | ||||
| 4 | 4006W046-45 | Box, Vent | 10 |
|
- | ||||
| 5 | 8003P009-60 | Bumper, Door (square) | 10 |
|
- | ||||
| 6 | 3818W002-15 | Channel, Vent Assembly | 10 |
|
- | ||||
| 7 | 4005F202-51 | Cover, Box | 10 |
|
- | ||||
| 8 | 4005F160-45 | Cover, Lock | 10 |
|
- | ||||
| 9 | WPY04000066 | Element, Bake (Replaces: 7406P075-60) | 10 |
|
Immediately | $ 70.53 | |||
| 10 | WPY04000048 | Element, Broil (Replaces: 7406P076-60) | 10 |
|
$ 160.58 | ||||
| 11 | 7706P153-60 | Extrusion, Bottom (blk) | 10 |
|
- | ||||
| 12 | 7750P035-60 | Extrusion, Side (lt-wht) | 10 |
|
- | ||||
| 13 | 7750P036-60 | Extrusion, Side (rt-wht) | 10 |
|
- | ||||
| 14 | 7706P199-60 | Extrusion, Top (blk) | 10 |
|
- | ||||
| 15 | 7706P185-60 | Extrusion, Top Front | 10 |
|
- | ||||
| 16 | 7756P071-60 | Extrusion, Vent | 10 |
|
- | ||||
| 17 | 7106P036-60 | Hinge | 10 |
|
- | ||||
| 18 | Y3413F01619 | Insert, Broil Pan | 10 |
|
- | ||||
| 19 | 40A15 | Bulb, Oven (Replaces: 7407P095-60) | 10 |
|
Immediately | $ 1.98 | |||
| 20 | Y3401F02019 | Pan, Broil | 10 |
|
- | ||||
| 21 | 2618F054-51 | Panel, Side (lt) | 10 |
|
- | ||||
| 21 | 2618F053-51 | Panel, Side (rt) | 10 |
|
- | ||||
| 22 | 7801P005-60 | Rack | 10 |
|
- | ||||
| 23 | 7801P007-60 | Rack, Offset | 10 |
|
- | ||||
| 24 | 7408P035-60 | Receptacle, Oven Bulb | 10 |
|
$ 30.71 | ||||
| 25 | 7002P006-60 | Insulation, Bottom | 10 |
|
- | ||||
| 25 | 3804F104-51 | Retainer, Bottom Insulation | 10 |
|
- | ||||
| 26 | 3804F096-51 | Retainer, Rear | 10 |
|
- | ||||
| 27 | 3804F053-51 | Retainer,top | 10 |
|
- | ||||
| 28 | 3604F101-80 | Shield, Air | 10 |
|
- | ||||
| 29 | 3807F176-15 | Support, Broil Element | 10 |
|
- | ||||
| 30 | 3807F137-80 | Support | 10 |
|
- | ||||
| 31 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 | |||
| 32 | 7112P020-60 | Clip, Oven Front | 10 |
|
- | ||||
| 33 | 7002P109-60 | Insulation, Top & Rear | 10 |
|
- | ||||
| 33 | 7002P111-60 | Insulation, Top & Back | 10 |
|
- | ||||
| 34 | 2205F003-19 | Bottom, Oven | 10 |
|
- | ||||
| 35 | 7103P051-60 | Nut, Snap | 10 |
|
- | ||||
| 35 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 35 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 10 |
|
$ 9.89 | ||||
| NI | 5125A139-60 | Wires, Loose | 10 |
|
- | ||||
| NI | 5185A107-60 | Harness, Wire | 10 |
|
- |
