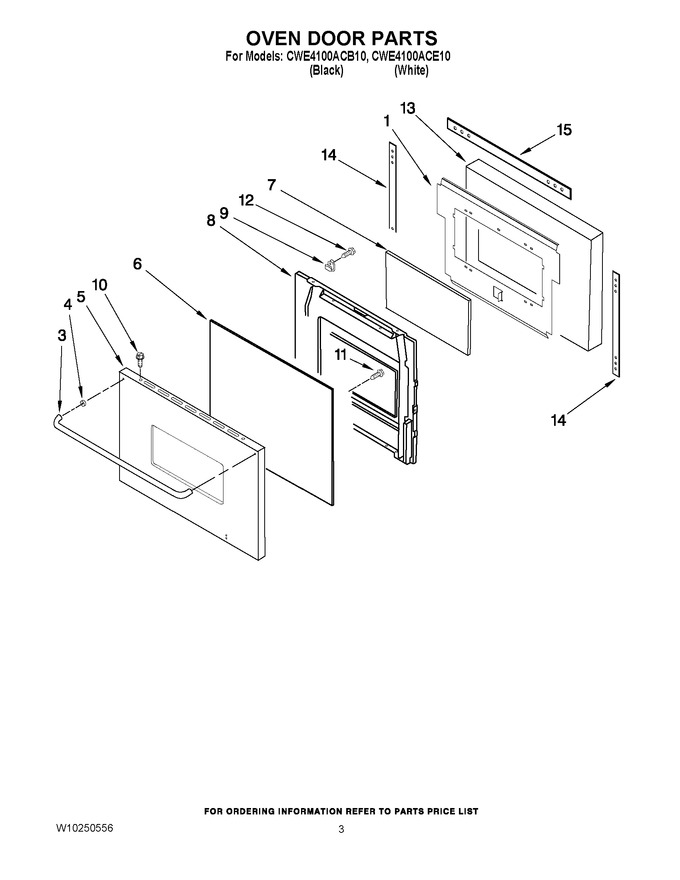

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F102-51 | Baffle, Door |
|
- | |||||
| 3 | 7701P137-60 | Handle, Door (white) |
|
- | |||||
| 3 | 7701P136-60 | Handle, Door (black) |
|
- | |||||
| 4 | 8010P127-60 | Spacer, Door Handle (black) |
|
- | |||||
| 4 | 8010P128-60 | Spacer, Door Handle (white) |
|
- | |||||
| 5 | 2401F199-70 | Panel, Oven Door (black) |
|
- | |||||
| 5 | 2401F199-71 | Panel, Oven Door (white) |
|
- | |||||
| 6 | 7902P590-60 | Glass, Oven Door (white) |
|
- | |||||
| 6 | 7902P357-60 | Glass, Oven Door (black) |
|
$ 99.18 | |||||
| 7 | 7902P715-60 | Glass, Inner |
|
$ 56.81 | |||||
| 8 | 2402W205-19 | Lining, Door |
|
- | |||||
| 9 | 7112P094-60 | Retainer, Glass (white) |
|
$ 7.19 | |||||
| 9 | 7112P093-60 | Retainer, Glass (black) |
|
$ 12.67 | |||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 6.85 | ||||
| 11 | 7101P326-60 | Screw |
|
- | |||||
| 12 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 13 | 7002P015-60 | Insulation, Door |
|
- | |||||
| 14 | 7212P003-60 | Seal, Oven Door (vertical) |
|
$ 46.94 | |||||
| 15 | WP7212P006-60 | Seal, Oven Door (horizontal) (Replaces: 7212P006-60) |
|
$ 105.81 |
