01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Optional Parts

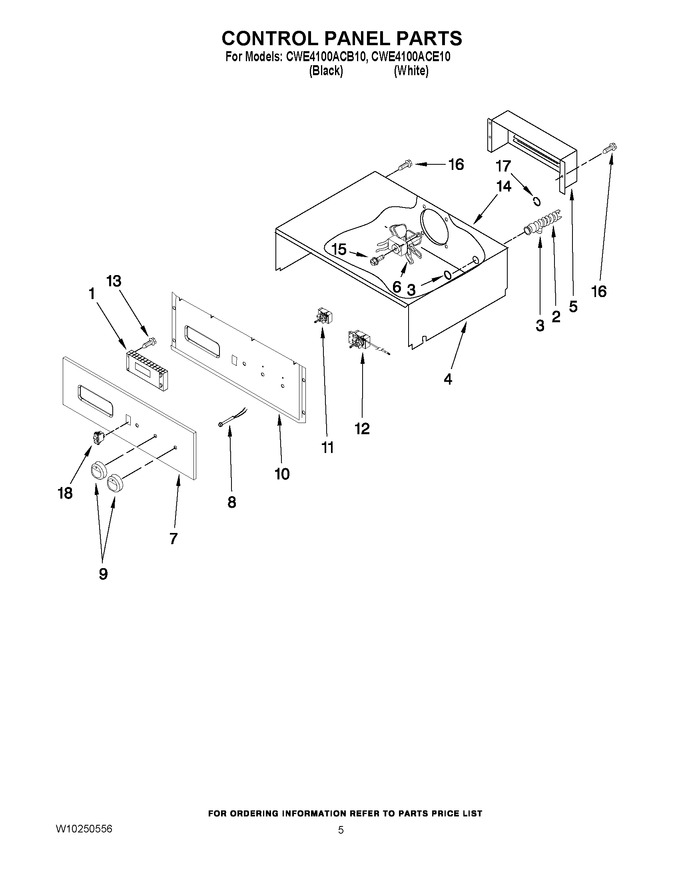

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10799767		Clock (black)   (Replaces: 7602P164-60)				$ 493.35
1	W10799767		Clock (white)   (Replaces: 7602P165-60)				$ 493.35
2	5700P367-60		Conduit, Flexible		Appelez-nous	-
3	7417P017-60		Connector, Cable				$ 9.81
4	W10214294		Cover, Wire		Appelez-nous	-
5	4005F262-51		Cover, Fan		Appelez-nous	-
6	7427P006-60		Assembly, Fan		Appelez-nous	-
7	W10198729		Panel, Control (black)		Appelez-nous	-
7	W10198731		Panel, Control (white)		Appelez-nous	-
8	W10852510		Light, Indicator   (Replaces: 7407P102-60)				$ 106.11
9	7735P049-60		Knob, Thermostat (black)		Appelez-nous	-
9	7735P048-60		Knob, Thermostat (white)		Appelez-nous	-
10	3605F194-80		Plate, Backing		Appelez-nous	-
11	7403P172-60		Switch, Selector		Appelez-nous	-
12	7404P049-60		Thermostat, Oven				$ 113.60
13	WP59002061		Screw   (Replaces: 7101P077-60)				$ 6.98
14	3605F164-51		Plate, Conduit		Appelez-nous	-
15	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
16	7101P287-60		Screw				$ 12.03
17	8008P004-60		Grommet		Appelez-nous	-
18	7403P067-60		Switch, Rocker (black)   (Replaces: 7403P841-60)				$ 91.35
18	7403P067-60		Switch, Rocker (white)   (Replaces: 7403P842-60)				$ 91.35
