SELECT A DIAGRAM

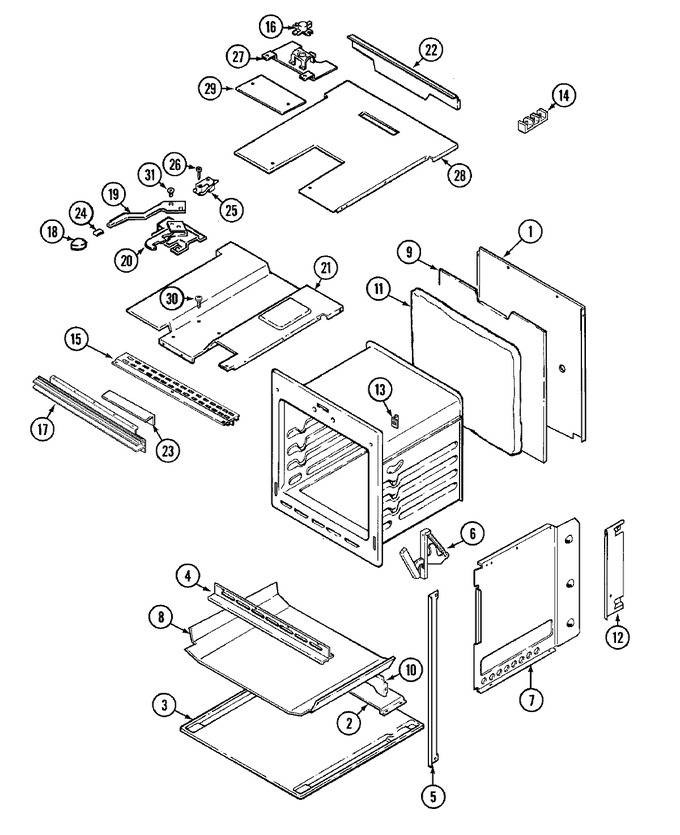

01 - Body (cwe4800acb/ace)
02 - Control Panel
03 - Door
04 - Oven (cwe4800acb/ace)
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F121-51 | Back, Main | 10 |
|
- | ||||
| 2 | 790385 | Baffle Base | 10 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 3 | 4003F011-80 | Base, Wall Oven | 10 |
|
- | ||||
| 4 | 7706P153-60 | Extrusion, Bottom (blk) | 10 |
|
- | ||||
| 4 | 74001846 | Extrusion, Bottom (blk) | 14 |
|
- | ||||
| 5 | 7750P105-60 | Extrusion, Side (rt-blk) | 10 |
|
- | ||||
| 5 | 74001569 | Trim, Side (rt-blk) | 14 |
|
- | ||||
| 5 | 74001570 | Trim, Side (lt-blk) | 14 |
|
- | ||||
| 5 | 7750P103-60 | Extrusion, Side (lt-blk) | 10 |
|
- | ||||
| 6 | 7106P037-60 | Hinge, Door | 10 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| 6 | 74001984 | Hinge, Door | 12 |
|
$ 126.36 | ||||
| 7 | 2618F114-51 | Panel, Side (rt) | 10 |
|
- | ||||
| 7 | 2618F113-51 | Panel, Side (lt) | 10 |
|
- | ||||
| 8 | 7002P163-60 | Insulation (bottom) | 10 |
|
- | ||||
| 8 | 3804F104-51 | Retainer, Bottom Insulation | 10 |
|
- | ||||
| 9 | 3804F096-51 | Retainer, Rear | 10 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 10 | 790263 | Support, Lower | 10 |
|
- | ||||
| 11 | 7002P153-60 | Insulation (top & Rear) | 10 |
|
- | ||||
| 11 | 7002P154-60 | Insulation (back) | 10 |
|
- | ||||
| 12 | 3601F244-51 | Baffle, Side | 10 |
|
- | ||||
| 13 | 790399 | Clip, Oven Front | 10 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 14 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 10 |
|
Immediately | $ 31.65 | |||
| 15 | 7752P011-60 | Extrusion, Top (blk) | 10 |
|
- | ||||
| 16 | 7403P063-60 | Switch, High Limit | 10 |
|
$ 156.41 | ||||
| 17 | 7103P051-60 | Nut, Snap | 10 |
|
- | ||||
| 17 | 7756P070-60 | Extrusion, Vent (blk) | 10 |
|
- | ||||
| 17 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 10 |
|
$ 9.89 | ||||
| 18 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 18 | 7701P132-60 | Handle, Door Latch (blk) | 10 |
|
- | ||||
| 19 | 5700A221-31 | Lock Lever Assy | 10 |
|
- | ||||
| 19 | 74003005 | Lever, Latch (blk) | 18 |
|
- | ||||
| 20 | 8002P072-60 | Latch, Door (Replaces: 74006343) | 19 |
|
$ 306.52 | ||||
| 20 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 10 |
|
$ 306.52 | ||||
| 21 | 3804F118-51 | Retainer, Top | 10 |
|
- | ||||
| 22 | 3604F101-80 | Shield, Air | 10 |
|
- | ||||
| 23 | 3604F048-80 | Shield, Terminal | 10 |
|
- | ||||
| 24 | W10124350 | Not Required Part Or See Note | 18 |
|
- | ||||
| 24 | 7112P112-60 | Clip, Latch Lever | 10 |
|
$ 4.83 | ||||
| 25 | 7403P347-60 | Switch, Door Lock | 10 |
|
- | ||||
| 26 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 27 | 3801F128-45 | Bracket, Hi Limit | 10 |
|
- | ||||
| 28 | 4005F452-51 | Cover, Box | 10 |
|
- | ||||
| 28 | 74009403 | Cover, Box | 21 |
|
- | ||||
| 29 | 4005F160-45 | Cover, Lock | 10 |
|
- | ||||
| 30 | WP7101P126-60 | Screw (Replaces: 7101P356-60) | 10 |
|
Immediately | $ 6.85 | |||
| 31 | WP4159193 | Screw (Replaces: 7101P115-60) | 10 |
|
$ 4.29 | ||||
| NI | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 |
