SELECT A DIAGRAM

01 - Body (cwe4800acb/ace)


02 - Control Panel


03 - Door

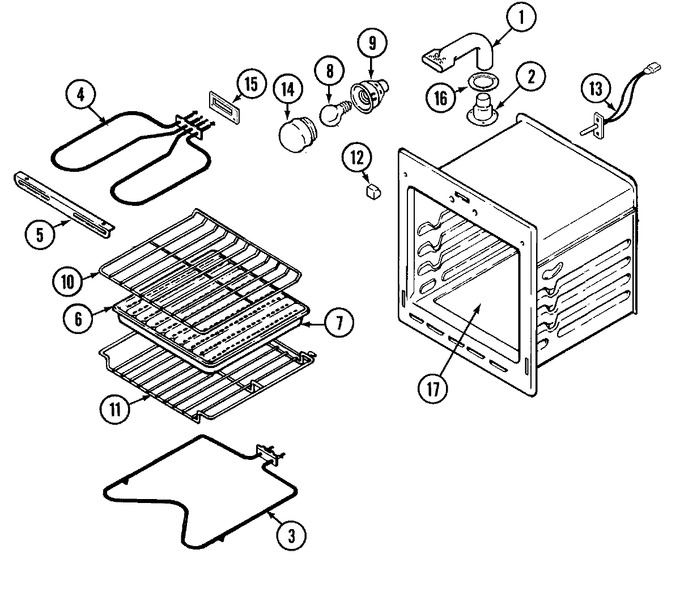

04 - Oven (cwe4800acb/ace)


05 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8026P022-60		Tube, Oven Vent	10	Appelez-nous	-
2	7101P287-60		Screw, Metal Grounding	10			$ 12.03
2	7505P226-60		Catalyst, Burner	10	Appelez-nous	-
3	WPY04000066		Element Bake   (Replaces: Y04000047)	10		Immediately	$ 70.53
3	WPY04000066		Element, Bake (2400w)   (Replaces: 74004073)	18		Immediately	$ 70.53
4	WP7406P203-60		Element, Broil   (Replaces: 7406P090-60)	10			$ 154.52
5	3807F176-15		Support, Broil Element	10	Appelez-nous	-
6	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	22	Appelez-nous	-
6	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
6	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	24	Appelez-nous	-
7	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	22	Appelez-nous	-
7	Y3401F02019		Pan, Broil	10	Appelez-nous	-
7	W10124350		Not Required Part Or See Note No Longer Supplied With Unit	24	Appelez-nous	-
8	8009		Bulb-oven   (Replaces: 7407P103-60)	10		Immediately	$ 16.80
9	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	10		Immediately	$ 66.10
10	7801P005-60		Rack	10	Appelez-nous	-
11	7801P007-60		Rack, Offset	10	Appelez-nous	-
12	8003P009-60		Bumper, Door (square)	10	Appelez-nous	-
13	12001656		Sensor, Oven   (Replaces: 7430P010-60)	10		Immediately	$ 39.55
14	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	10		Immediately	$ 71.93
15	7201P003-60		Gasket, Element	10	Appelez-nous	-
16	7201P016-60		Gasket	10	Appelez-nous	-
17	2205F003-19		Bottom, Oven	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
