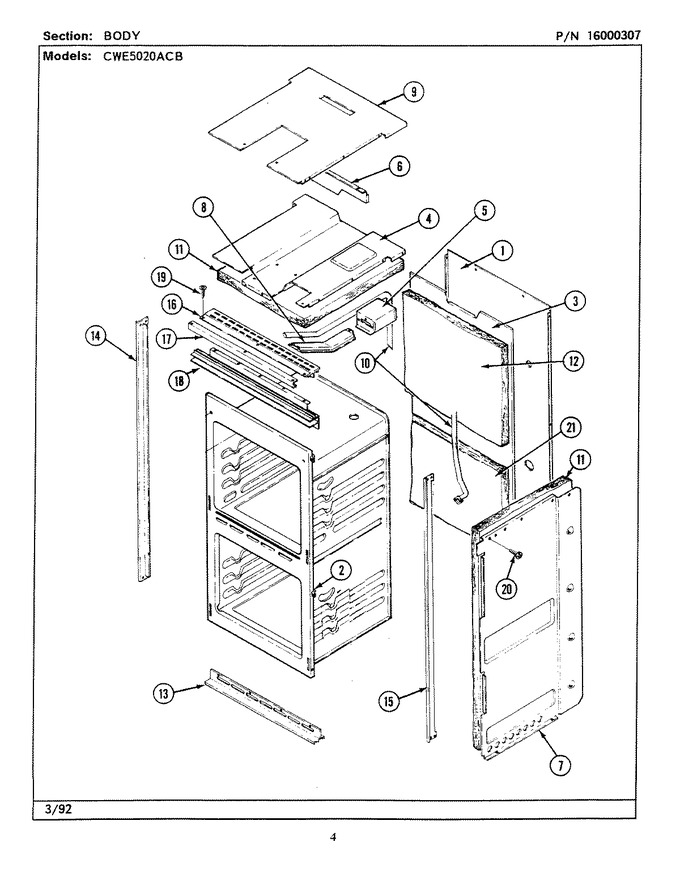

01 - Body (cwe5020acb)
02 - Control Panel (cwe5020acb, Cwe5500acb)
03 - Door-lower (cwe5520acb, Cwe5500acb)
04 - Door-upper (cwe5020acb)
05 - Oven (cwe5020acb, Cwe5500acb)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F143-51 | Back, Main | 11 |
|
- | ||||
| 2 | 7112P020-60 | Clip, Oven Front | 11 |
|
- | ||||
| 3 | 3804F101-51 | Retainer, Rear | 11 |
|
- | ||||
| 4 | 3804F053-51 | Retainer,top | 11 |
|
- | ||||
| 5 | 4006W046-15 | Box, Vent | 11 |
|
- | ||||
| 6 | 3604F101-80 | Shield, Air | 11 |
|
- | ||||
| 7 | 2618F056-51 | Panel, Side-lt | 11 |
|
- | ||||
| 7 | 2618F055-51 | Panel, Side Right | 11 |
|
- | ||||
| 8 | 3818W002-15 | Channel, Vent Assembly | 11 |
|
- | ||||
| 9 | 4005F202-51 | Cover, Box | 11 |
|
- | ||||
| 10 | 8026P014-60 | Tube, Oven Vent | 11 |
|
- | ||||
| 11 | 7002P107-60 | Insulation, Wrapper | 11 |
|
- | ||||
| 12 | 7002P111-60 | Insulation, Top & Back | 11 |
|
- | ||||
| 13 | 7706P075-60 | Extrusion, Bottom (chr) | 11 |
|
- | ||||
| 14 | 7750P033-60 | Extrusion, Side-l | 11 |
|
- | ||||
| 15 | 7750P034-60 | Extrusion, Side-r | 11 |
|
- | ||||
| 16 | 7706P078-60 | Extrusion, Top (wht) | 11 |
|
- | ||||
| 17 | 7706P198-60 | Extrusion, Top Front | 11 |
|
- | ||||
| 18 | 7756P025-60 | Extension Vent | 11 |
|
- | ||||
| 19 | 7103P051-60 | Nut, Snap | 11 |
|
- | ||||
| 19 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 11 |
|
Immediately | $ 12.62 | |||
| 19 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 11 |
|
$ 9.89 | ||||
| 19 | 7103P040-60 | Nut, Snap (wht) | 11 |
|
- | ||||
| 20 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 11 |
|
Immediately | $ 6.85 | |||
| 21 | 7002P006-60 | Insulation, Bottom | 11 |
|
- |
