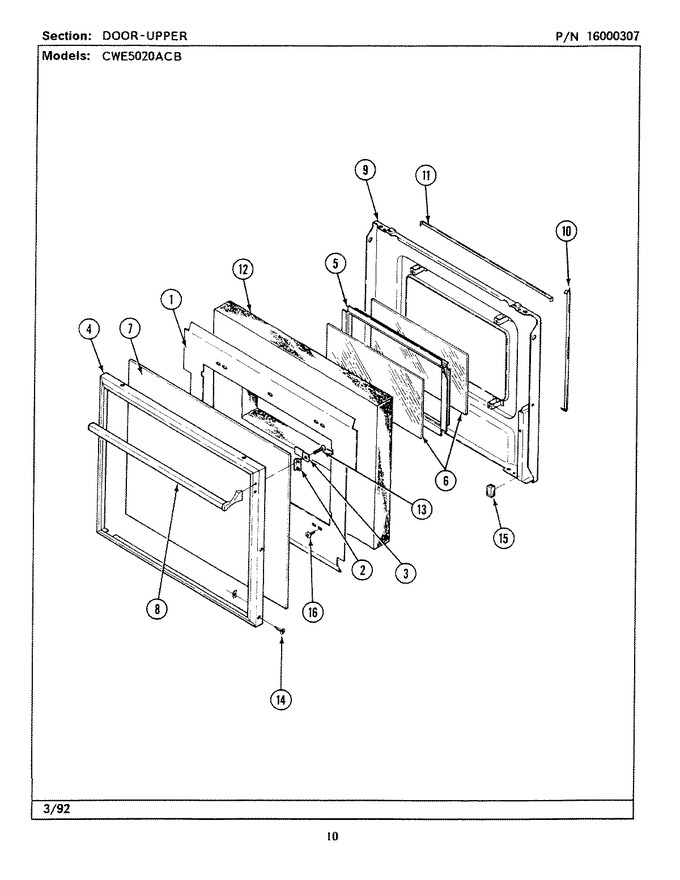

04 - Door-upper (cwe5020acb)
05 - Oven (cwe5020acb, Cwe5500acb)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F102-51 | Baffle, Upper Door | 11 |
|
- | ||||
| 2 | 7112P017-60 | Clip, Door Handle | 11 |
|
- | ||||
| 3 | 3804F010-50 | Retainer | 11 |
|
- | ||||
| 4 | 7706P251-60 | Frame, Door Upr | 11 |
|
- | ||||
| 5 | 3603F013-80 | Frame, Window----na | 11 |
|
- | ||||
| 6 | 7902P035-60 | Glass, Door Inner | 11 |
|
- | ||||
| 7 | 7902P264-60 | Glass, Door | 11 |
|
- | ||||
| 8 | 7701P060-60 | Handle, Door | 11 |
|
- | ||||
| 9 | 2402W133-19 | Lining, Door | 11 |
|
- | ||||
| 10 | 7212P003-60 | Seal, Oven Door | 11 |
|
$ 46.94 | ||||
| 11 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 11 |
|
$ 105.81 | ||||
| 12 | 7002P015-60 | Insulation, Door | 11 |
|
- | ||||
| 13 | 7101P079-60 | Screw | 11 |
|
- | ||||
| 14 | WP7101P126-60 | Screw, No.10-16ab (Replaces: 7101P221-60) | 11 |
|
Immediately | $ 6.85 | |||
| 15 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 11 |
|
$ 11.95 | ||||
| 15 | 7208P001-60 | Seal, Glass | 11 |
|
- | ||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 11 |
|
Immediately | $ 6.85 |
