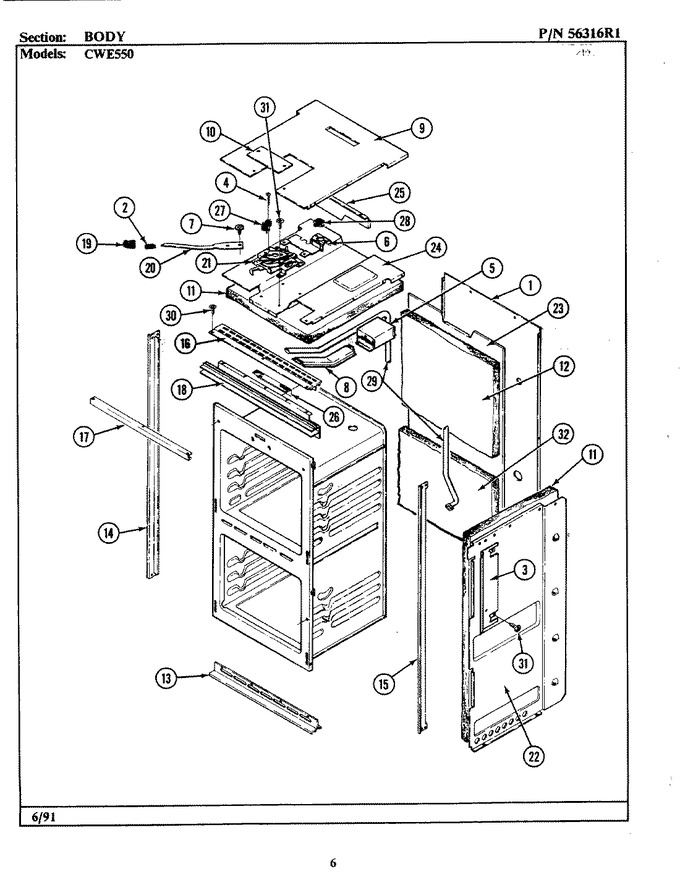

01 - Body (cwe550)
02 - Control Panel (cwe502, Cwe550)
03 - Door-lower (cwe502, Cwe550)
04 - Door-upper (cwe550)
05 - Oven (cwe502, Cwe550)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F143-51 | Back, Main | 00 |
|
- | ||||
| 2 | 7112P003-60 | Clip, Latch Handle | 00 |
|
- | ||||
| 3 | 3601F130-51 | Baffle, Side | 00 |
|
- | ||||
| 4 | 7101P035-60 | Screw, Switch | 00 |
|
- | ||||
| 5 | 4006W046-45 | Box, Vent | 00 |
|
- | ||||
| 6 | 3801F128-45 | Bracket, Hi Limit | 00 |
|
- | ||||
| 7 | WP4159193 | Screw (Replaces: 7101P115-60) | 00 |
|
$ 4.29 | ||||
| 8 | 3818W002-15 | Channel, Vent Assembly | 00 |
|
- | ||||
| 9 | 4005F202-51 | Cover, Box | 00 |
|
- | ||||
| 10 | 4005F160-45 | Cover, Lock | 00 |
|
- | ||||
| 11 | 7002P108-60 | Insulation, Wrapper | 00 |
|
- | ||||
| 12 | 7002P112-60 | Insulation, Top & Back | 00 |
|
- | ||||
| 13 | 7706P075-60 | Extrusion, Bottom (chr) | 00 |
|
- | ||||
| 14 | 7706P076-60 | Extrusion, Trim | 00 |
|
- | ||||
| 14 | 7750P018-60 | Extrusion | 06 |
|
- | ||||
| 14 | 7750P033-60 | Extrusion, Side-l | 07 |
|
- | ||||
| 15 | 7706P077-60 | Extrusion, Trim | 00 |
|
- | ||||
| 15 | 7750P034-60 | Extrusion, Side-r | 07 |
|
- | ||||
| 15 | 7750P019-60 | Extrusion | 06 |
|
- | ||||
| 16 | 7706P078-60 | Extrusion, Top (wht) | 00 |
|
- | ||||
| 17 | 7706P198-60 | Extrusion, Top Front | 00 |
|
- | ||||
| 18 | 7706P186-60 | Extrusion, Vent | 06 |
|
- | ||||
| 19 | 7701P088-60 | Handle, Latch (blk) | 00 |
|
- | ||||
| 20 | 8009P011-60 | Lever, Latch | 00 |
|
- | ||||
| 20 | 7214P020-60 | Tubing, Heat Shrink | 00 |
|
- | ||||
| 21 | 8002P072-60 | Latch Assy. (Replaces: 8002P016-60) | 00 |
|
$ 306.52 | ||||
| 21 | 7003P001-60 | Insulator | 00 |
|
- | ||||
| 22 | 2618F056-51 | Panel, Side-lt | 00 |
|
- | ||||
| 22 | 2618F055-51 | Panel, Side Right | 00 |
|
- | ||||
| 23 | 3804F101-51 | Retainer, Rear | 00 |
|
- | ||||
| 24 | 3804F053-51 | Retainer,top | 00 |
|
- | ||||
| 25 | 3604F101-80 | Shield, Air | 00 |
|
- | ||||
| 26 | 3604F048-80 | Shield, Terminal | 00 |
|
- | ||||
| 27 | 7403P007-60 | Switch, Door Lock | 00 |
|
- | ||||
| 28 | 7403P063-60 | Switch, High Limit | 00 |
|
$ 156.41 | ||||
| 29 | 8026P014-60 | Tube, Oven Vent | 00 |
|
- | ||||
| 30 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 00 |
|
$ 9.89 | ||||
| 30 | 7103P051-60 | Nut, Snap | 00 |
|
- | ||||
| 30 | 7103P040-60 | Nut, Snap (wht) | 00 |
|
- | ||||
| 30 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 00 |
|
$ 15.94 | ||||
| 31 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 32 | 7002P007-60 | Insulation, Botton | 00 |
|
- |
