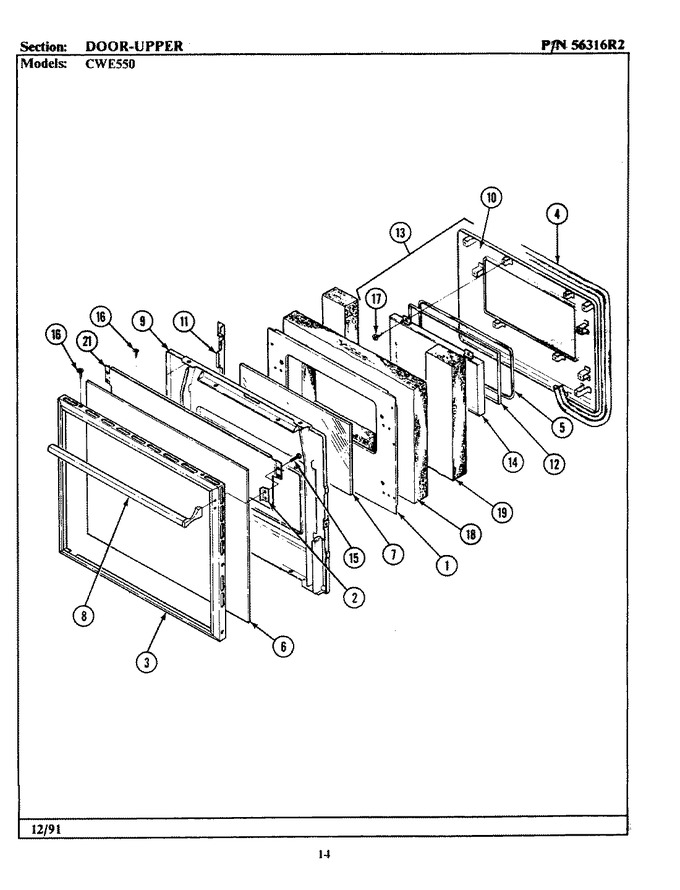

01 - Body (cwe550)
02 - Control Panel (cwe502, Cwe550)
03 - Door-lower (cwe502, Cwe550)
04 - Door-upper (cwe550)
05 - Oven (cwe502, Cwe550)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W131-51 | Baffle, Door Assembly | 00 |
|
- | ||||
| 2 | 7112P017-60 | Clip, Door Handle | 00 |
|
- | ||||
| 3 | 7706P249-60 | Frame | 00 |
|
- | ||||
| 4 | 7201P004-60 | Gasket | 00 |
|
- | ||||
| 5 | 7201P020-60 | Gasket | 00 |
|
- | ||||
| 6 | 7902P265-60 | Glass, Door Screened | 00 |
|
- | ||||
| 6 | 8270P065-60 | Tape | 00 |
|
- | ||||
| 7 | 7902P097-60 | Glass, Inner | 00 |
|
$ 63.87 | ||||
| 8 | 7701P060-60 | Handle, Door | 00 |
|
- | ||||
| 9 | 8114P274-60 | Label (cleaning Inst.) | 10 |
|
- | ||||
| 9 | 2402W130-19 | Lining, Door | 12 |
|
- | ||||
| 9 | 2402W130-15 | Lining Assembly | 00 |
|
- | ||||
| 10 | 2410W038-15 | Pad, Oven Door | 05 |
|
- | ||||
| 10 | 2410W034-15 | Pad, Door | 00 |
|
- | ||||
| 10 | 2410W042-19 | Pad, Door | 12 |
|
- | ||||
| 11 | 3804F021-45 | Retainer, Gasket | 00 |
|
- | ||||
| 12 | 3804F051-80 | Retainer, Glass | 00 |
|
- | ||||
| 13 | 2410A042-15 | Pad, Oven Door | 00 |
|
- | ||||
| 13 | 2410A042-19 | Pad, Oven Door Assy. | 12 |
|
- | ||||
| 14 | 5700A082-60 | Window Assy. | 00 |
|
$ 164.77 | ||||
| 15 | 7101P239-60 | Screw | 00 |
|
- | ||||
| 16 | WP7101P126-60 | Screw, No.10-16ab (Replaces: 7101P221-60) | 00 |
|
Immediately | $ 6.85 | |||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 18 | 7002P023-60 | Insulation, Door----na | 00 |
|
- | ||||
| 19 | 7002P021-60 | Insulation, Door | 00 |
|
- | ||||
| 21 | 3804F017-51 | Retainer, Glass | 00 |
|
- | ||||
| NI | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 00 |
|
$ 11.95 |
