SELECT A DIAGRAM

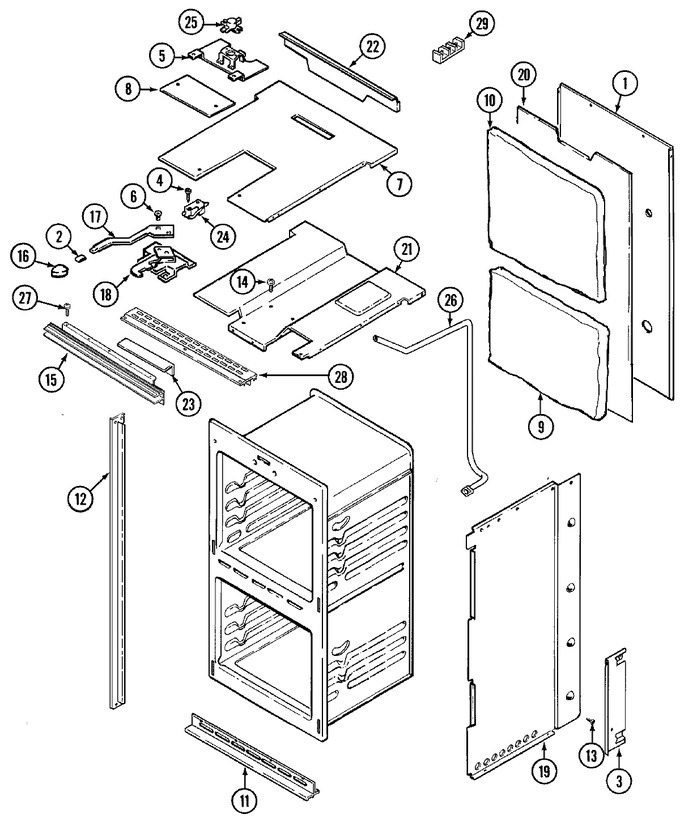

01 - Body (cwe5800acb/ace)


02 - Control Panel


03 - Door


04 - Door-lower (cwe5800acb/ace)


05 - Oven (cwe4800acb/ace)


06 - Oven (cwe5800acb/ace)


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F143-51		Back, Main	10	Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
2	7112P003-60		Clip, Latch Handle	10	Appelez-nous	-
2	W10124350		Not Required Part Or See Note	17	Appelez-nous	-
3	3601F244-51		Baffle, Side	10	Appelez-nous	-
4	7101P330-60		Screw, Switch	10	Appelez-nous	-
4	7101P287-60		Screw, Metal Grounding	10			$ 12.03
5	3801F128-45		Bracket, Hi Limit	10	Appelez-nous	-
6	WP4159193		Screw   (Replaces: 7101P115-60)	10			$ 4.29
7	4005F452-51		Cover, Box	10	Appelez-nous	-
7	74009403		Cover, Box	21	Appelez-nous	-
8	4005F160-45		Cover, Lock	10	Appelez-nous	-
9	7002P163-60		Insulation (bottom)	10	Appelez-nous	-
10	7002P157-60		Insulation, Wrapper	10	Appelez-nous	-
10	7002P154-60		Insulation (back)	10	Appelez-nous	-
11	7706P153-60		Extrusion, Bottom (blk)	10	Appelez-nous	-
11	74001846		Extrusion, Bottom (blk)	14	Appelez-nous	-
12	74001561		Trim, Side (rt-blk)	14	Appelez-nous	-
12	74001562		Trim, Side (lt-blk)	14	Appelez-nous	-
12	7750P107-60		Extrusion, Side (lt)	10	Appelez-nous	-
12	7750P109-60		Extrusion, Side (rt-blk)	10	Appelez-nous	-
13	WP7101P126-60		Screw   (Replaces: 7101P356-60)	10		Immediately	$ 6.85
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	10		Immediately	$ 6.85
15	7756P070-60		Extrusion, Vent (blk)	10	Appelez-nous	-
16	7701P132-60		Handle, Door Latch (blk)	10	Appelez-nous	-
16	W10124350		Not Required Part Or See Note	17	Appelez-nous	-
17	74003005		Lever, Latch (blk)	17	Appelez-nous	-
17	5700A221-31		Lock Lever Assy	10	Appelez-nous	-
18	8002P072-60		Latch, Door   (Replaces: 74006343)	19			$ 306.52
18	8002P072-60		Latch, Door   (Replaces: 74006343)	22			$ 306.52
18	8002P072-60		Latch Assy.   (Replaces: 8002P016-60)	10			$ 306.52
18	7003P001-60		Insulator	10	Appelez-nous	-
19	2618F116-51		Panel, Side (lt)	10	Appelez-nous	-
19	2618F115-51		Panel, Side (rt)	10	Appelez-nous	-
20	3804F105-51		Retainer, Rear	10	Appelez-nous	-
21	3804F118-51		Retainer, Top	10	Appelez-nous	-
22	3604F101-80		Shield, Air	10	Appelez-nous	-
23	3604F048-80		Shield, Terminal	10	Appelez-nous	-
24	7403P347-60		Switch, Door Lock	10	Appelez-nous	-
25	7403P063-60		Switch, High Limit	10			$ 156.41
26	8026P014-60		Tube, Oven Vent	10	Appelez-nous	-
27	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
28	7752P011-60		Extrusion, Top (blk)	10	Appelez-nous	-
29	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)	10		Immediately	$ 31.65

    View Diagram in Separate Window       Print Part List
