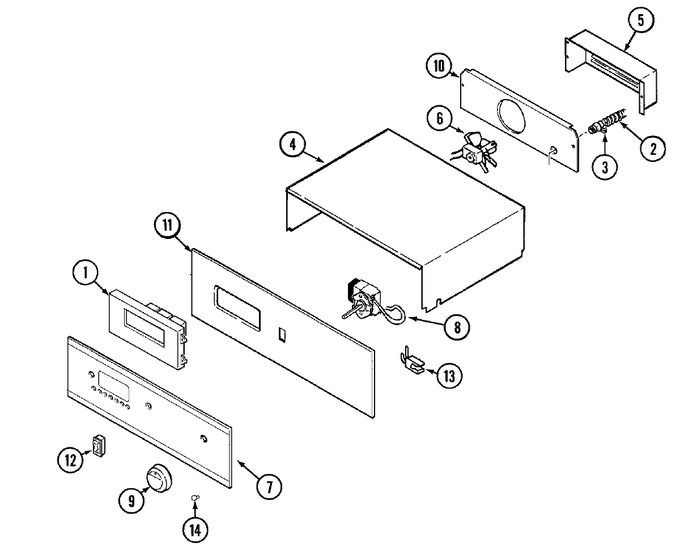

01 - Body (cwe5800acb/ace)
02 - Control Panel
03 - Door
04 - Door-lower (cwe5800acb/ace)
05 - Oven (cwe4800acb/ace)
06 - Oven (cwe5800acb/ace)
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7428P088-60 | Relay (Replaces: 74009405) | 21 |
|
- | ||||
| 1 | WPW10201915 | Clock (Replaces: 74001405) | 10 |
|
$ 246.29 | ||||
| 1 | 74009404 | Wire, Relay (dlb) | 21 |
|
$ 6.90 | ||||
| 2 | 74001547 | Wires, Tubing | 10 |
|
- | ||||
| 2 | 3414F037-44 | Tubing, 1/2 X 48`` Flexible | 10 |
|
- | ||||
| 3 | 3605F131-51 | Plate, Reinforcement | 10 |
|
- | ||||
| 3 | 7417P017-60 | Connector, Cable | 10 |
|
$ 9.81 | ||||
| 4 | 4005F150-51 | Cover, Wire | 10 |
|
- | ||||
| 5 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 10 |
|
Immediately | $ 6.85 | |||
| 5 | 4005F262-51 | Cover, Fan | 10 |
|
- | ||||
| 6 | 7101P079-60 | Screw | 10 |
|
- | ||||
| 6 | 8008P004-60 | Grommet | 10 |
|
- | ||||
| 6 | 7427P010-60 | Fan Assy. | 10 |
|
- | ||||
| 7 | 74001411 | Panel, Control (blk) | 10 |
|
- | ||||
| 8 | 7404P042-60 | Thermostat, Lower | 10 |
|
- | ||||
| 8 | 7101P279-60 | Screw W/washer | 10 |
|
- | ||||
| 9 | 74001412 | Knob, Thermostat (blk) | 10 |
|
- | ||||
| 10 | 3605F164-51 | Plate, Conduit | 10 |
|
- | ||||
| 11 | 3605F195-80 | Plate, Backing | 10 |
|
- | ||||
| 11 | 74007897 | Plate, Backing | 20 |
|
- | ||||
| 12 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 13 | WP74004153 | Light, Indicator (Replaces: 7407P101-60) | 10 |
|
Immediately | $ 8.02 | |||
| 14 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 5.16 | ||||
| NI | 5170D220-60 | Harness, Main | 10 |
|
- | ||||
| NI | 74009402 | Harness, Main | 24 |
|
- | ||||
| NI | 5125A390-60 | Harness, Loose Wire | 10 |
|
- | ||||
| NI | 5170P185-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| NI | 8112P324-60 | Manual, Use & Care | 23 |
|
- | ||||
| NI | 74001421 | Manual, Use & Care | 10 |
|
- |
