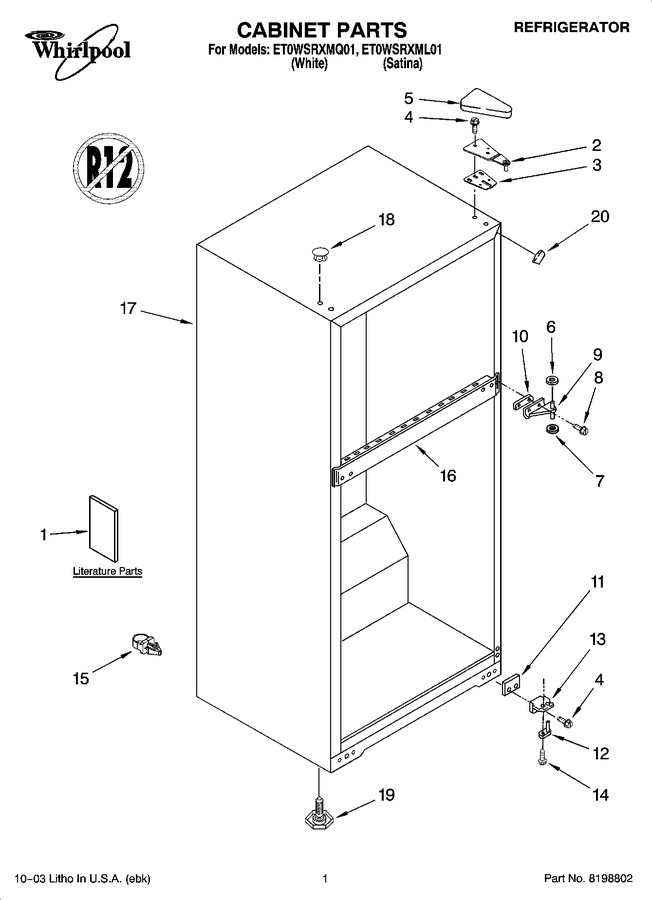

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2258848 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 1 | LIT2252895 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT2258882 | Literature Parts (energy Guide) |
|
- | |||||
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | LIT677969 | Literature Parts (do-it-yourself Manual, Ref/fzr) |
|
- | |||||
| 2 | 2211109 | Hinge, Top |
|
- | |||||
| 3 | W11169703 | Shim-hinge-top (Replaces: 2221885) |
|
$ 13.54 | |||||
| 4 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 5 | 842010 | Cover, Hinge (white) |
|
- | |||||
| 5 | 2155938 | Cover, Hinge (black) |
|
$ 15.55 | |||||
| 6 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 7 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.12 | ||||
| 8 | 3400112 | Screw |
|
$ 62.96 | |||||
| 9 | 2211114 | Hinge, Center |
|
- | |||||
| 10 | 2166043 | Shim, Hinge Center |
|
$ 59.80 | |||||
| 11 | 2211299 | Shim, Hinge Bottom |
|
$ 11.01 | |||||
| 12 | 2211158 | Hinge-pin, Bottom |
|
$ 30.22 | |||||
| 13 | 2211159 | Hinge-butt, Bottom |
|
- | |||||
| 14 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 9.82 | |||||
| 15 | 2219077 | Clip, Harness |
|
$ 55.06 | |||||
| 16 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 17 | N/A | Cabinet (not Serviced) |
|
- | |||||
| 18 | WP2183998 | Hole Plug (4) (black) (Replaces: 2183998) |
|
$ 16.29 | |||||
| 18 | WP2151652 | Hole Plug (4) (white) (Replaces: 2201012) |
|
$ 19.60 | |||||
| 19 | W11117769 | Leg, Leveler (Replaces: 937220) |
|
Immediately | $ 16.61 | ||||
| 20 | 2191595 | Filler, Corner (white) |
|
$ 5.61 | |||||
| 20 | 2219294 | Filler, Corner (black) |
|
- |
