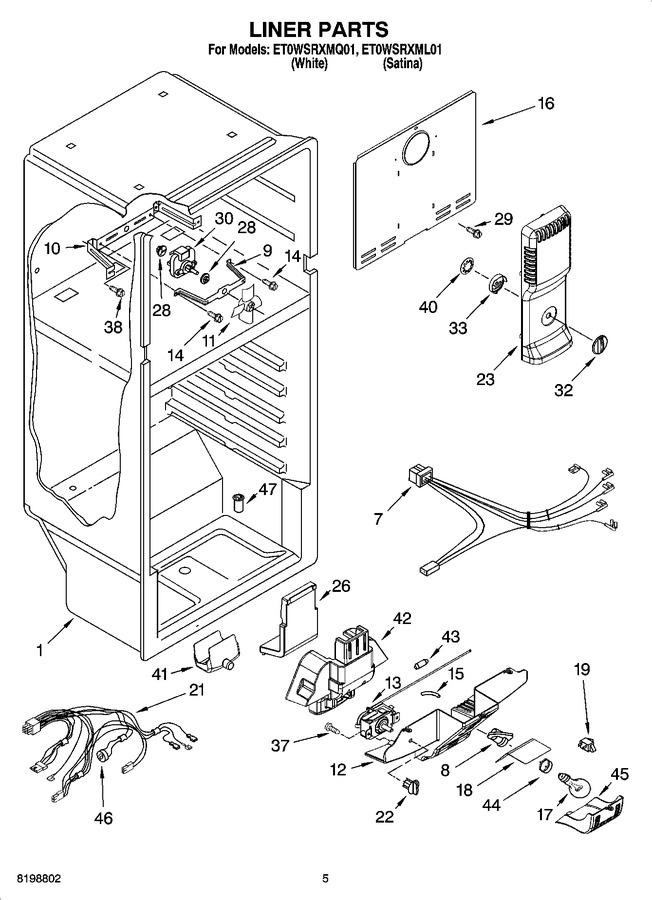

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 7 | 2258427 | Wire Assembly Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 9 | WPW10180172 | Fan Support Bracket (Replaces: 2197404) |
|
$ 36.24 | |||||
| 10 | 2197405 | Fan Mounting Bracket |
|
$ 30.23 | |||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | 2219266 | Control Box |
|
- | |||||
| 13 | 2211031 | Thermostat |
|
$ 110.27 | |||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.26 | |||||
| 15 | WP2196003 | Thermostat Tube Barrier (Replaces: 549512) |
|
$ 7.16 | |||||
| 16 | 2211099 | Cover, Evaporator |
|
- | |||||
| 17 | W11679940 | Light Bulb (Replaces: 2252970) |
|
Immediately | $ 10.17 | ||||
| 18 | 2210832 | Light Shield |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 21 | 2262122 | Wiring, Freezer |
|
- | |||||
| 22 | 2211234 | Control Knob |
|
$ 25.03 | |||||
| 23 | 2219263 | Air Tower |
|
- | |||||
| 26 | 2210844 | Air Diffuser, Rear |
|
- | |||||
| 28 | WP2264462 | Grommet-motor (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 30 | WPW10189703 | Evaporator Fan Motor (Replaces: 2201913) |
|
Immediately | $ 63.15 | ||||
| 32 | 2211237 | Knob, Freezer Control |
|
$ 77.26 | |||||
| 33 | 2211238 | Damper, Freezer Control |
|
- | |||||
| 37 | WP487353 | Screw (Replaces: 488693) |
|
$ 6.81 | |||||
| 38 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 40 | 2211239 | Nut-push, Damper |
|
- | |||||
| 41 | 2211236 | Drain Cup |
|
$ 49.12 | |||||
| 42 | 2211026 | Air Diffuser (front) |
|
- | |||||
| 43 | 2200831 | Weight, Thermal |
|
- | |||||
| 44 | WP2175210 | Shroud, Light Socket (Replaces: 2169193) |
|
$ 74.35 | |||||
| 45 | 2211074 | Cover, Light |
|
$ 67.81 | |||||
| 46 | WP2211224 | Defrost, Bi-metal (Replaces: 2211224) |
|
$ 103.51 | |||||
| 47 | WP2210509 | Valve (Replaces: 2171931) |
|
$ 84.99 |
