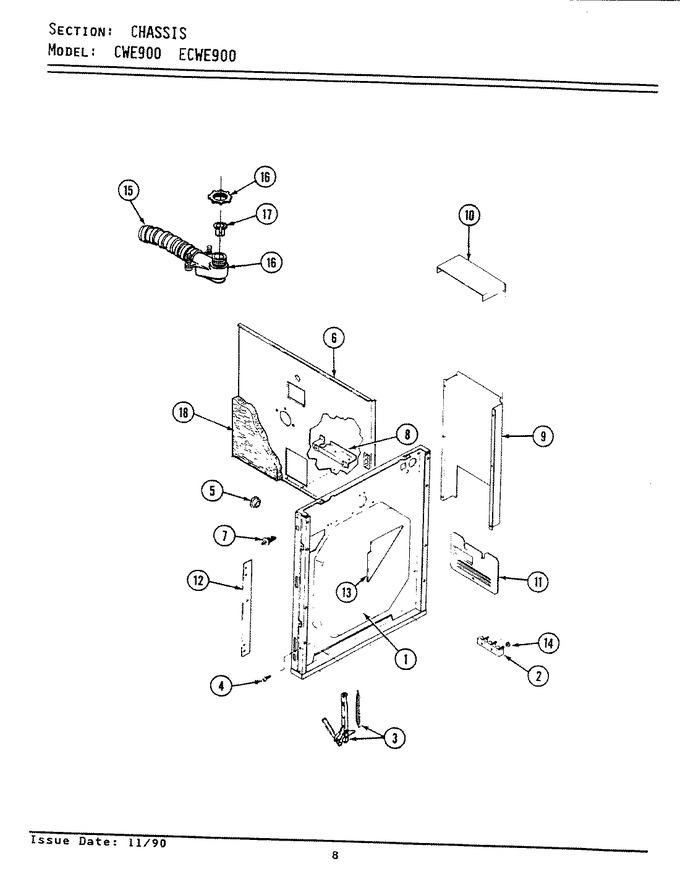

01 - Burner Box
02 - Chassis
03 - Control Panel (cwe900)
04 - Door
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 1 | 3601F161-80 | Baffle, Oven Door | 00 |
|
- | ||||
| 1 | 4009W065-80 | Lining,inner Side(r) | 00 |
|
- | ||||
| 1 | 4009W066-80 | Lining,inner Side(l) | 00 |
|
- | ||||
| 1 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 00 |
|
$ 4.29 | ||||
| 1 | WP4159193 | Screw (Replaces: 7101P112-60) | 00 |
|
$ 4.29 | ||||
| 1 | 7103P040-60 | Nut, Snap (wht) | 00 |
|
- | ||||
| 1 | 7103P045-60 | Nut, Nylon | 00 |
|
- | ||||
| 2 | WPW10245259 | Block, Wire Terminal (Replaces: 7401P028-60) | 00 |
|
Immediately | $ 31.65 | |||
| 3 | 7106P024-60 | Hinge (incl. Spring) | 00 |
|
- | ||||
| 4 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 00 |
|
$ 4.29 | ||||
| 5 | 8008P019-60 | Grommet | 00 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 6 | 4002F103-80 | Back, Main | 00 |
|
- | ||||
| 7 | 7403P105-60 | Switch, Push (oven Lamp) | 00 |
|
- | ||||
| 8 | 3605F163-80 | Plate Conduit | 00 |
|
- | ||||
| 9 | 4001F051-51 | Housing,main Wire | 00 |
|
- | ||||
| 10 | 4005F157-80 | Cover, Wire Housing | 00 |
|
- | ||||
| 11 | 4005F302-51 | Cover Access | 00 |
|
- | ||||
| 12 | 3601F106-51 | Baffle, Side Panel | 00 |
|
- | ||||
| 13 | 4005F163-51 | Cover, Switch | 00 |
|
- | ||||
| 14 | 7103P007-60 | Nut, Level | 00 |
|
- | ||||
| 15 | 3414F066-51 | Tubing, Conduit | 00 |
|
- | ||||
| 15 | 7109P002-60 | Washer | 00 |
|
- | ||||
| 16 | 7417P005-60 | Connector, Conduit | 00 |
|
- | ||||
| 17 | 8018P002-60 | Sleeve, Tube | 00 |
|
- | ||||
| 18 | 4804F002-60 | Insulation, Rear | 00 |
|
- |
