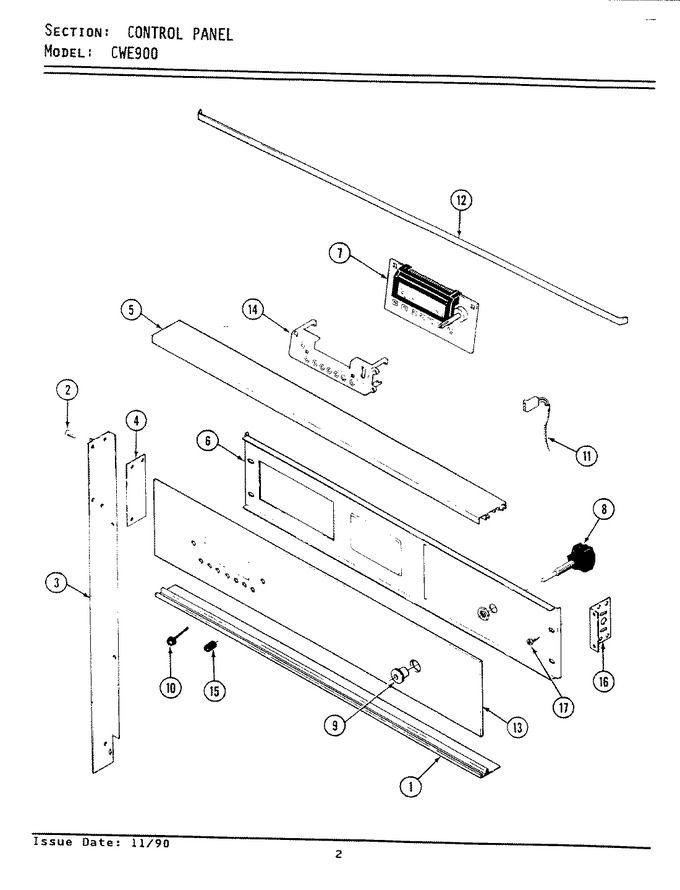

03 - Control Panel (cwe900)
04 - Door
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7756P043-60 | Trim, Control (btm) | 00 |
|
- | ||||
| 2 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 00 |
|
$ 15.94 | ||||
| 3 | 7706P144-60 | Trim, Side (right) | 00 |
|
- | ||||
| 3 | 7706P145-60 | Trim,side (left) | 00 |
|
- | ||||
| 4 | 7726P023-60 | Trim, End Cap | 00 |
|
- | ||||
| 5 | 7752P002-60 | Trim, Control Top | 00 |
|
- | ||||
| 6 | 3604F161-80 | Plate - Switch Mtg | 00 |
|
- | ||||
| 7 | 7003P034-60 | Shield, Clock Insulation | 00 |
|
- | ||||
| 7 | 7601P168-60 | Clock | 05 |
|
- | ||||
| 7 | 7601P177-60 | Clock | 07 |
|
- | ||||
| 7 | 7601P156-60 | Clock | 03 |
|
- | ||||
| 7 | 7601P120-60 | Clock | 00 |
|
- | ||||
| 8 | 7403P104-60 | Switch, Oven Lamp | 00 |
|
- | ||||
| 9 | 7214P007-60 | Sleeve, Switch (blk) | 00 |
|
- | ||||
| 10 | 7711P171-60 | Knob, Clock (button-blk) | 00 |
|
$ 19.90 | ||||
| 10 | 7711P452-60 | Button, Clock Set | 05 |
|
- | ||||
| 11 | 5170P065-60 | Harness, Oven Sensor | 00 |
|
- | ||||
| 11 | 5170P088-60 | Harness, Oven Sensor | 02 |
|
- | ||||
| 12 | 7706P167-60 | Trim, Filler Strip | 00 |
|
- | ||||
| 13 | 7912P064-60 | Glass,control Panel | 00 |
|
- | ||||
| 14 | 7730P006-60 | Lens | 00 |
|
- | ||||
| 15 | WP7711P492-60 | Knob, Clock (blk) (Replaces: 7711P431-60) | 05 |
|
$ 12.13 | ||||
| 15 | 7711P172-60 | Knob, Clock (blk) | 00 |
|
$ 23.55 | ||||
| 16 | 3801F170-45 | Bracket - Switch Plate | 00 |
|
- | ||||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 |
