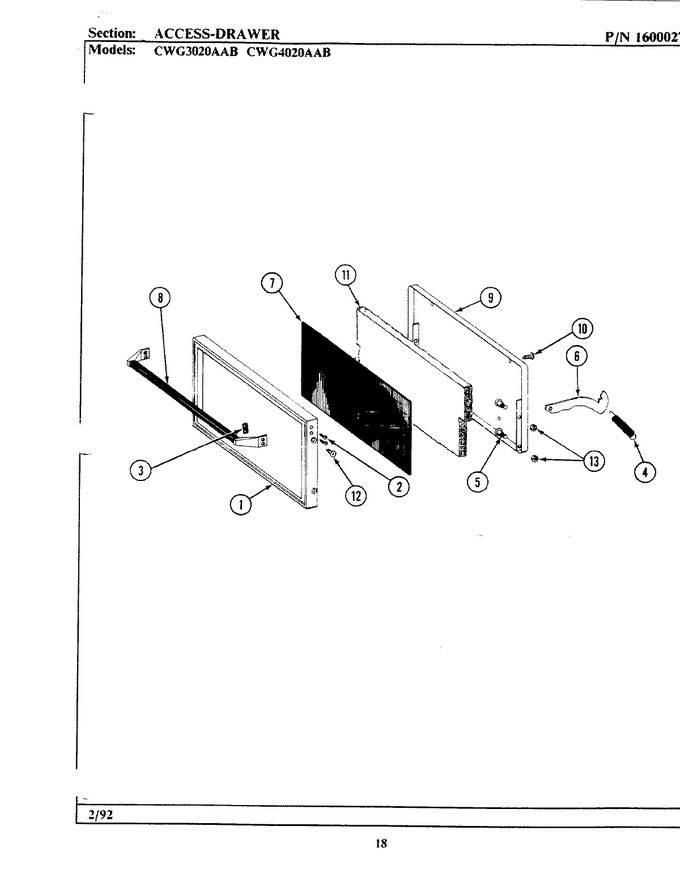

01 - Access Drawer
02 - Body
03 - Body-rear
04 - Control Panel
05 - Door
06 - Gas Controls
07 - Gas Controls
08 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7706P193-60 | Frame, Drwr | 10 |
|
- | ||||
| 2 | 7101P131-60 | Screw | 10 |
|
$ 5.81 | ||||
| 3 | M0282005 | Nut, 6-32 (Replaces: 7103P104-60) | 10 |
|
$ 7.07 | ||||
| 4 | 7803P034-60 | Spring, Broiler Door | 10 |
|
- | ||||
| 5 | 7101P134-60 | Bolt, Special | 10 |
|
- | ||||
| 6 | 3418F041-34 | Hinge | 10 |
|
- | ||||
| 7 | 3824F010-61 | Lug, Bro Door | 10 |
|
- | ||||
| 7 | 7914P003-60 | Glass, Broiler Door | 10 |
|
- | ||||
| 8 | 7701P036-60 | Handle, Door | 10 |
|
- | ||||
| 9 | 2404W024-23 | Lining, Broiler Door | 10 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 10 |
|
Immediately | $ 6.85 | |||
| 11 | 7002P067-60 | Insulation, Broiler Door | 10 |
|
- | ||||
| 12 | 7101P154-60 | Screw, Ph Flat Hd | 10 |
|
- | ||||
| 13 | W10080180 | Nut Lock (Replaces: 7103P072-60) | 10 |
|
$ 12.13 |
