01 - Access Drawer
02 - Body
03 - Body-rear
04 - Control Panel
05 - Door
06 - Gas Controls
07 - Gas Controls
08 - Oven
SELECT A DIAGRAM
New Model Search:

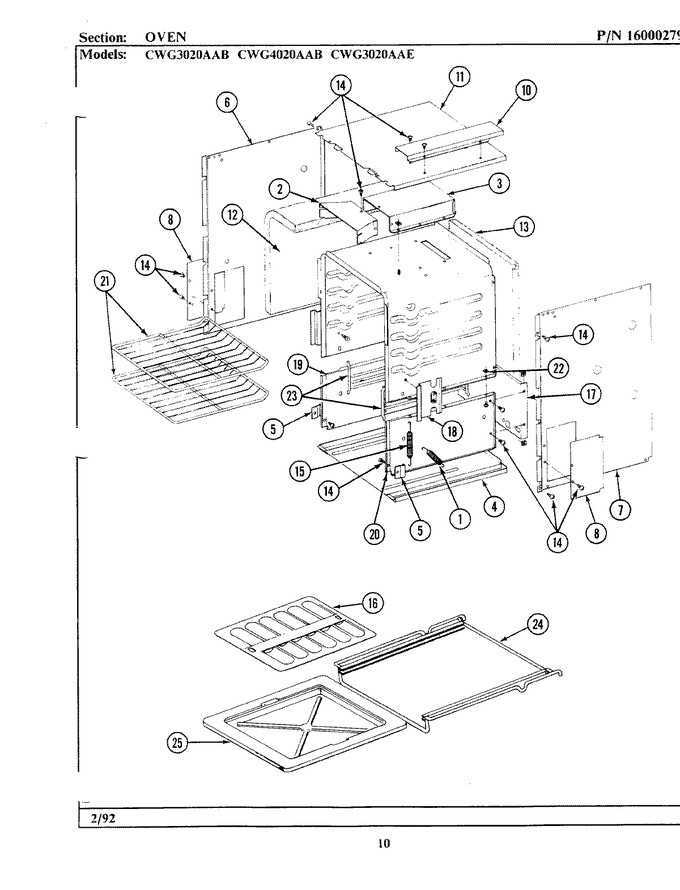

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7803P034-60 | Spring, Broiler Door | 00 |
|
- | ||||
| 2 | 3826F004-80 | Extension, Vent Box | 00 |
|
- | ||||
| 3 | 4006W078-51 | Box, Vent | 00 |
|
- | ||||
| 4 | 4003W018-51 | Base Assy | 00 |
|
- | ||||
| 5 | 3801F151-51 | Bracket, Oven Door S | 00 |
|
- | ||||
| 6 | 2618F061-51 | Panel, End-lt | 00 |
|
- | ||||
| 7 | 2618F062-51 | Panel, End-rt | 00 |
|
- | ||||
| 8 | 4005F224-51 | Cover, Hinge | 00 |
|
- | ||||
| 10 | 4005F240-51 | Cover Wire Top | 00 |
|
- | ||||
| 11 | 3804F056-51 | Cover, Insulation | 00 |
|
- | ||||
| 12 | 7002P083-60 | Insulation, Oven Wrap | 00 |
|
- | ||||
| 13 | 7002P089-60 | Insulation, Oven Bac | 00 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 15 | 7803P041-60 | Spring, Oven Door | 00 |
|
- | ||||
| 16 | 3413F012-23 | Tray, Broiler | 00 |
|
- | ||||
| 17 | 4002F135-23 | Back Broiler Compartment | 00 |
|
- | ||||
| 18 | 3604F119-61 | Shield, Insulation | 00 |
|
- | ||||
| 19 | 2228F003-23 | Side, Broiler-lt | 00 |
|
- | ||||
| 20 | 2228F004-23 | Side, Broiler-rt | 00 |
|
- | ||||
| 21 | 7801P020-60 | Rack, Oven | 00 |
|
- | ||||
| 22 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) | 00 |
|
$ 12.06 | ||||
| 23 | 7808P003-60 | Runner, Broiler Rack | 00 |
|
- | ||||
| 24 | 7801P018-60 | Rack, Broiler Pan | 00 |
|
- | ||||
| 25 | Y00000000 | See Note | 00 |
|
- | ||||
| NI | 7112P054-60 | Clip | 00 |
|
- | ||||
| NI | 7112P053-60 | Clip, Capillary | 00 |
|
- |
