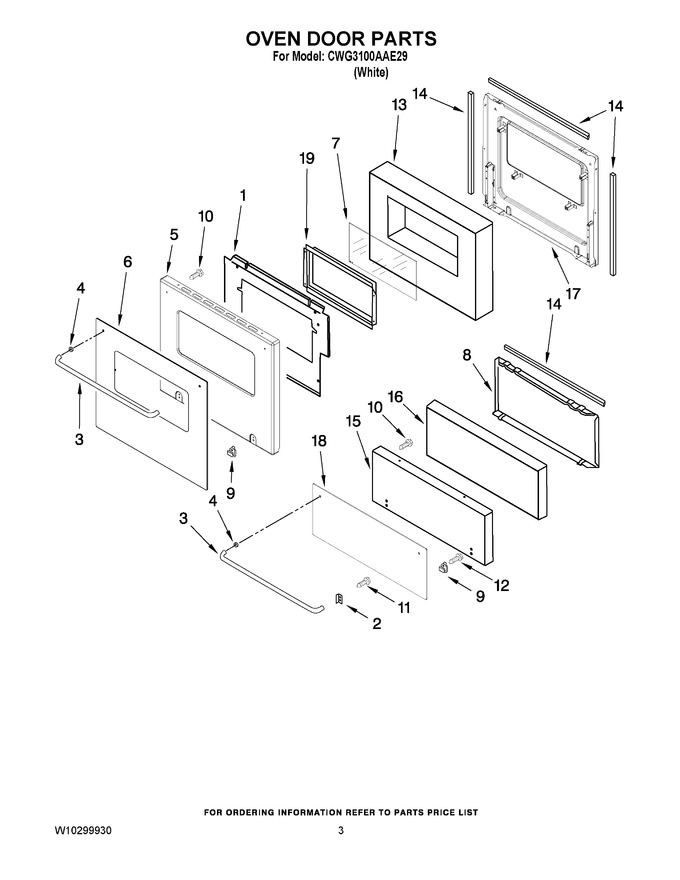

02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F102-51 | Baffle, Door |
|
- | |||||
| 2 | 7112P011-60 | Clip, Door Handle |
|
- | |||||
| 3 | 7701P137-60 | Handle, Door |
|
- | |||||
| 4 | 8010P128-60 | Spacer, Door Handle |
|
- | |||||
| 5 | 2401F199-71 | Panel, Oven Door |
|
- | |||||
| 6 | 7902P590-60 | Glass, Oven Door |
|
- | |||||
| 7 | 7902P715-60 | Glass, Inner |
|
$ 56.81 | |||||
| 8 | 2404F051-19 | Lining, Door |
|
- | |||||
| 9 | 7112P094-60 | Clip, Glass Retainer |
|
$ 7.19 | |||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 6.85 | ||||
| 11 | 7101P326-60 | Screw |
|
- | |||||
| 12 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 13 | 7002P015-60 | Insulation, Door Pad |
|
- | |||||
| 14 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) |
|
$ 105.81 | |||||
| 14 | 7212P003-60 | Seal, Door (vertical) |
|
$ 46.94 | |||||
| 15 | 2416F069-71 | Panel, Broiler |
|
- | |||||
| 16 | 7002P067-60 | Insulation, Broiler Door |
|
- | |||||
| 17 | 2402W205-19 | Pad, Oven Door |
|
- | |||||
| 18 | 7914P020-60 | Glass, Door |
|
- | |||||
| 19 | 3603F013-80 | Frame, Window |
|
- |
