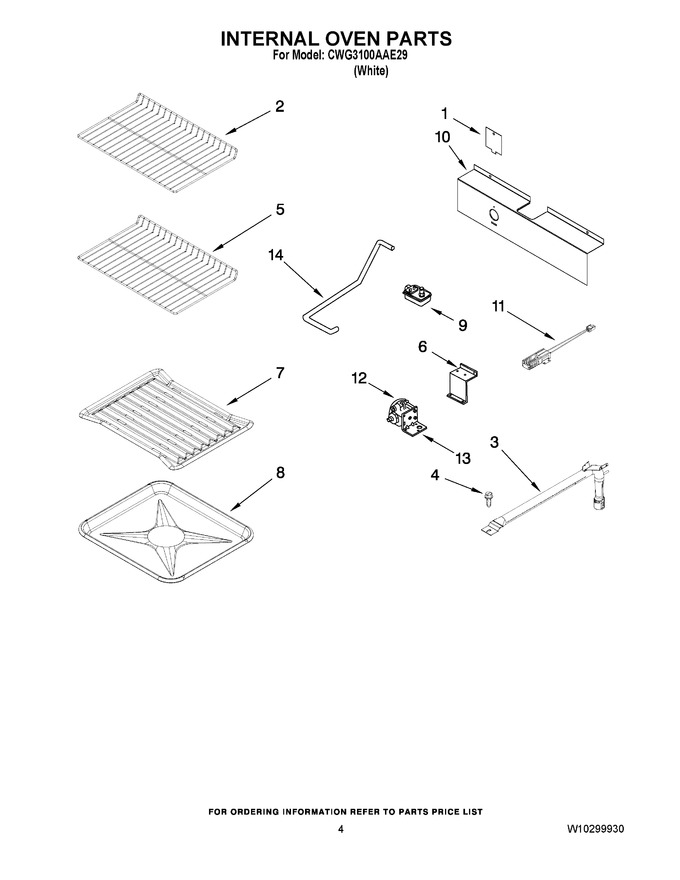

03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10218965 | Cover, Hole |
|
- | |||||
| 2 | 7801P153-60 | Rack, Oven |
|
- | |||||
| 3 | 7505P295-60 | Burner, Broil |
|
- | |||||
| 4 | 7101P287-60 | Screw |
|
$ 12.03 | |||||
| 5 | 7801P153-60 | Rack, Oven(2) |
|
- | |||||
| 6 | 3807F467-51 | Support, Valve |
|
- | |||||
| 7 | 3413F018-19 | Insert, Broil |
|
$ 36.59 | |||||
| 8 | 3401F075-19 | Pan, Broiler |
|
$ 35.15 | |||||
| 9 | 7501P176-60 | Valve, Oven |
|
- | |||||
| 10 | W10204427 | Cover, Valve |
|
- | |||||
| 11 | 74007498 | Ignitor, Oven (Replaces: 7432P106-60) |
|
Immediately | $ 78.40 | ||||
| 12 | 7510P082-60 | Regulator, Pressure |
|
- | |||||
| 13 | 3807F466-51 | Support, Regulator |
|
- | |||||
| 14 | 7506P266-60 | Tubing, Valve |
|
- |
