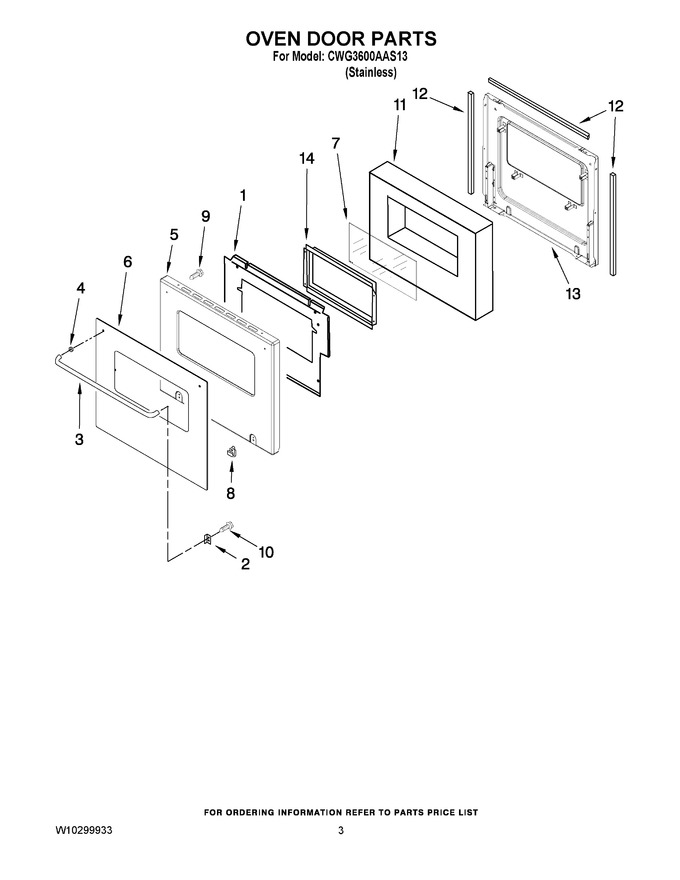

01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F103-51 | Baffle, Door (lower) |
|
- | |||||
| 1 | 3601F102-51 | Baffle, Door (upper) |
|
- | |||||
| 2 | 7112P011-60 | Clip, Door Handle |
|
- | |||||
| 3 | WP7701P495-60 | Handle, Door (Replaces: 7701P495-60) |
|
$ 169.48 | |||||
| 4 | 8010P127-60 | Spacer, Door Handle |
|
- | |||||
| 5 | 7101P242-60 | Screw |
|
- | |||||
| 5 | 2401F161-70 | Panel, Oven Door (lower) |
|
- | |||||
| 5 | 2401F199-70 | Panel, Oven Door (upper) |
|
- | |||||
| 6 | 7922P055-60 | Glass, Oven Door (upper) |
|
$ 132.70 | |||||
| 6 | 7922P049-60 | Glass, Oven Door (lower) |
|
- | |||||
| 7 | 7902P715-60 | Glass, Inner(2) |
|
$ 56.81 | |||||
| 8 | 7112P159-60 | Clip, Glass Retainer |
|
- | |||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 6.85 | ||||
| 10 | 7101P326-60 | Screw |
|
- | |||||
| 11 | 7002P015-60 | Insulation, Door Pad (upper) |
|
- | |||||
| 11 | 7002P019-60 | Insulation, Door Pad (lower) |
|
- | |||||
| 12 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) |
|
$ 105.81 | |||||
| 12 | 7212P003-60 | Seal, Door (sides/upper) |
|
$ 46.94 | |||||
| 12 | 7212P007-60 | Seal, Door (sides/lower) |
|
$ 47.10 | |||||
| 13 | 2402W205-19 | Pad, Oven Door (upper) |
|
- | |||||
| 13 | 2402W231-19 | Pad, Oven Door (lower) |
|
- | |||||
| 13 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 12.20 | |||||
| 14 | 7201P139-60 | Gasket, Door |
|
- | |||||
| 14 | 3603F013-80 | Frame, Window(2) |
|
- |
