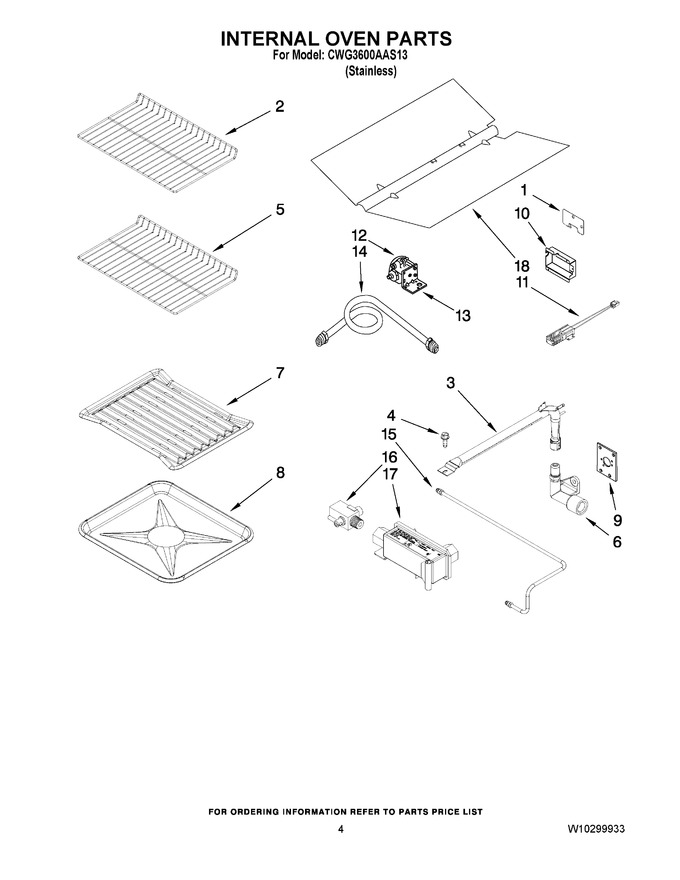

03 - Internal Oven Parts


04 - Control Panel Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4005F421-45		Cover, Ignitor		Appelez-nous	-
1	WP4159193		Screw   (Replaces: 7101P282-60)				$ 4.29
2	7801P153-60		Rack, Oven		Appelez-nous	-
3	7505P294-60		Burner, Broil		Appelez-nous	-
4	7101P287-60		Screw				$ 12.03
5	W10282521		Rack, Oven				$ 138.53
6	7507P306-60		Fitting, Bake		Appelez-nous	-
7	3413F018-19		Insert, Broil				$ 36.59
8	3401F075-19		Pan, Broiler				$ 35.15
9	3807F122-34		Support, Flame		Appelez-nous	-
10	WP7101P072-60		Screw   (Replaces: 7101P072-60)				$ 6.77
10	W10204428		Cover, Valve				$ 56.68
11	74007498		Ignitor, Oven   (Replaces: 7432P106-60)			Immediately	$ 78.40
12	7510P081-60		Regulator, Pressure		Appelez-nous	-
13	WPW10068250		Screw   (Replaces: 7101P074-60)				$ 3.66
13	3807F466-51		Support, Regulator		Appelez-nous	-
14	7506P265-60		Tubing, Valve		Appelez-nous	-
15	7506P300-60		Tubing, Safety		Appelez-nous	-
16	7502P383-60		Valve, Shut Off				$ 41.27
17	7501P217-60		Valve, Safety		Appelez-nous	-
17	7101P071-60		Screw		Appelez-nous	-
18	3601F215-45		Baffle, Burner		Appelez-nous	-
