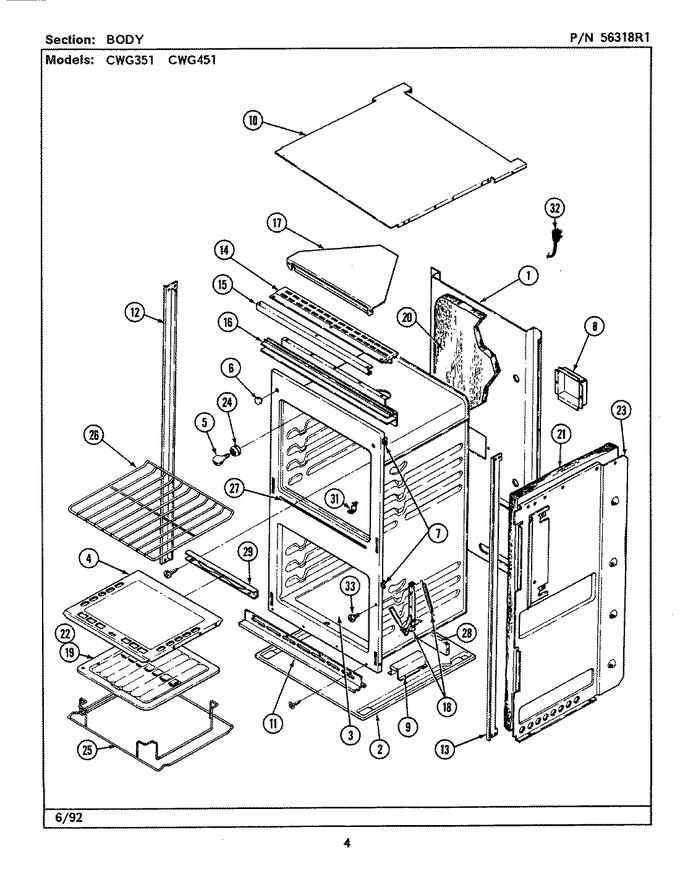

01 - Body
02 - Control Panel
03 - Door-lower
04 - Door-upper
05 - Gas Controls
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F041-51 | Back, Main | 00 |
|
- | ||||
| 2 | 4003F013-80 | Base, Wall Oven | 00 |
|
- | ||||
| 3 | 3601F109-45 | Baffle | 00 |
|
- | ||||
| 3 | 2205F005-16 | Bottom, Oven | 00 |
|
- | ||||
| 4 | 2205F008-16 | Bottom, Oven | 00 |
|
- | ||||
| 5 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 00 |
|
Immediately | $ 1.98 | |||
| 6 | 8003P002-60 | Bumper Door (round) | 00 |
|
- | ||||
| 6 | 8003P009-60 | Bumper, Door (square) | 07 |
|
- | ||||
| 7 | 7401P018-60 | Block | 00 |
|
- | ||||
| 7 | 7112P020-60 | Clip, Oven Front | 00 |
|
- | ||||
| 8 | 4005F088-80 | Cover | 00 |
|
- | ||||
| 9 | 4005F027-51 | Cover, Fuse Box | 00 |
|
- | ||||
| 10 | 4005F153-51 | Cover, Wire | 00 |
|
- | ||||
| 11 | 7706P075-60 | Extrusion, Bottom (chr) | 00 |
|
- | ||||
| 12 | 7750P033-60 | Extrusion, Side-l | 06 |
|
- | ||||
| 12 | 7750P018-60 | Extrusion | 04 |
|
- | ||||
| 12 | 7706P076-60 | Extrusion, Trim | 00 |
|
- | ||||
| 13 | 7706P077-60 | Extrusion, Trim | 00 |
|
- | ||||
| 13 | 7750P019-60 | Extrusion | 04 |
|
- | ||||
| 13 | 7750P034-60 | Extrusion, Side-r | 06 |
|
- | ||||
| 14 | 7706P078-60 | Extrusion, Top (wht) | 00 |
|
- | ||||
| 15 | 7706P198-60 | Extrusion, Top Front | 00 |
|
- | ||||
| 16 | 7103P040-60 | Nut, Snap (wht) | 00 |
|
- | ||||
| 16 | 7103P051-60 | Nut, Snap | 00 |
|
- | ||||
| 16 | WP7103P114-60 | Nut, Snap (round-wht) (Replaces: 7103P039-60) | 00 |
|
$ 9.89 | ||||
| 16 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 00 |
|
Immediately | $ 12.62 | |||
| 16 | 7756P026-60 | Extrusion, Vent | 04 |
|
- | ||||
| 16 | 7756P005-60 | Extrusion, Vent | 00 |
|
- | ||||
| 17 | 4006W008-23 | Flue Box Assy | 00 |
|
- | ||||
| 17 | 8008P004-60 | Grommet | 00 |
|
- | ||||
| 18 | 7106A013-60 | Hinge, Lower Door | 00 |
|
- | ||||
| 18 | 7106A018-60 | Hinge, Oven Door | 01 |
|
- | ||||
| 18 | 7106A015-60 | Hinge, Upper Door | 00 |
|
- | ||||
| 18 | 7106A020-60 | Hinge, Oven Door | 01 |
|
- | ||||
| 19 | 4396923 | Insert, Broil Pan (Replaces: 3413F012-15) | 00 |
|
Immediately | $ 52.04 | |||
| 19 | 4396923 | Insert Pan (Replaces: 3413F012-19) | 10 |
|
Immediately | $ 52.04 | |||
| 20 | 7002P109-60 | Insulation, Top & Rear | 00 |
|
- | ||||
| 21 | 7002P107-60 | Insulation, Wrapper | 00 |
|
- | ||||
| 22 | 4396923 | Pan, Broiler (Replaces: 3401F015-15) | 00 |
|
Immediately | $ 52.04 | |||
| 23 | 2618F055-51 | Panel, Side Right | 00 |
|
- | ||||
| 23 | 2618F056-51 | Panel, Side-lt | 00 |
|
- | ||||
| 24 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 24 | 7408P001-60 | Recept, Oven Light | 00 |
|
- | ||||
| 25 | 7801P016-60 | Rack, Broil Bright Chrome | 00 |
|
- | ||||
| 26 | 7801P005-60 | Rack | 00 |
|
- | ||||
| 27 | 7212P014-60 | Seal, Door (top) | 00 |
|
$ 48.10 | ||||
| 28 | 3807F139-80 | Support | 00 |
|
- | ||||
| 29 | 3807F027-15 | Support, Oven Bottom | 00 |
|
- | ||||
| 29 | 3807F029-80 | Support | 00 |
|
- | ||||
| 31 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 00 |
|
Immediately | $ 11.07 | |||
| 32 | 7402P014-60 | Cord, Power | 00 |
|
- | ||||
| 33 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 00 |
|
$ 4.29 | ||||
| NI | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 00 |
|
Immediately | $ 12.62 |
