01 - Body
02 - Control Panel
03 - Door-lower
04 - Door-upper
05 - Gas Controls
New Model Search:

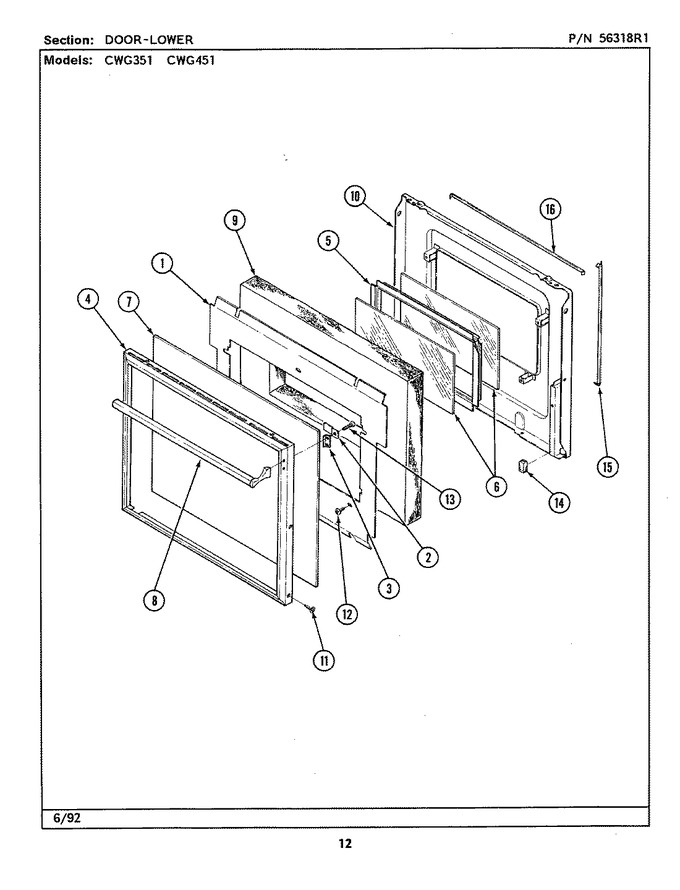

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F101-45 | Baffle, Oven Burner | 00 |
|
- | ||||
| 2 | 3804F010-34 | Clip, Glass | 00 |
|
- | ||||
| 3 | 7112P017-60 | Clip, Door Handle | 00 |
|
- | ||||
| 4 | 7706P247-60 | Frame, Door Lwr | 00 |
|
- | ||||
| 5 | 3603F013-80 | Frame, Window----na | 00 |
|
- | ||||
| 6 | 7902P035-60 | Glass, Door Inner | 00 |
|
- | ||||
| 7 | 7902P263-60 | Glass, Door Lower | 00 |
|
- | ||||
| 8 | 7701P060-60 | Handle, Door | 00 |
|
- | ||||
| 9 | 7002P019-60 | Insulation, Door Lower | 00 |
|
- | ||||
| 10 | 2402W132-16 | Lining Assy | 00 |
|
- | ||||
| 11 | WP7101P126-60 | Screw, No.10-16ab (Replaces: 7101P221-60) | 00 |
|
Immediately | $ 6.85 | |||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 00 |
|
Immediately | $ 6.85 | |||
| 13 | 7101P079-60 | Screw | 00 |
|
- | ||||
| 14 | 7208P001-60 | Seal, Glass | 00 |
|
- | ||||
| 15 | 7212P007-60 | Seal, Door (vertical) | 00 |
|
$ 47.10 | ||||
| 16 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 00 |
|
$ 105.81 | ||||
| NI | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 00 |
|
Immediately | $ 12.62 |
