SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door-lower
04 - Door-upper
05 - Gas Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:

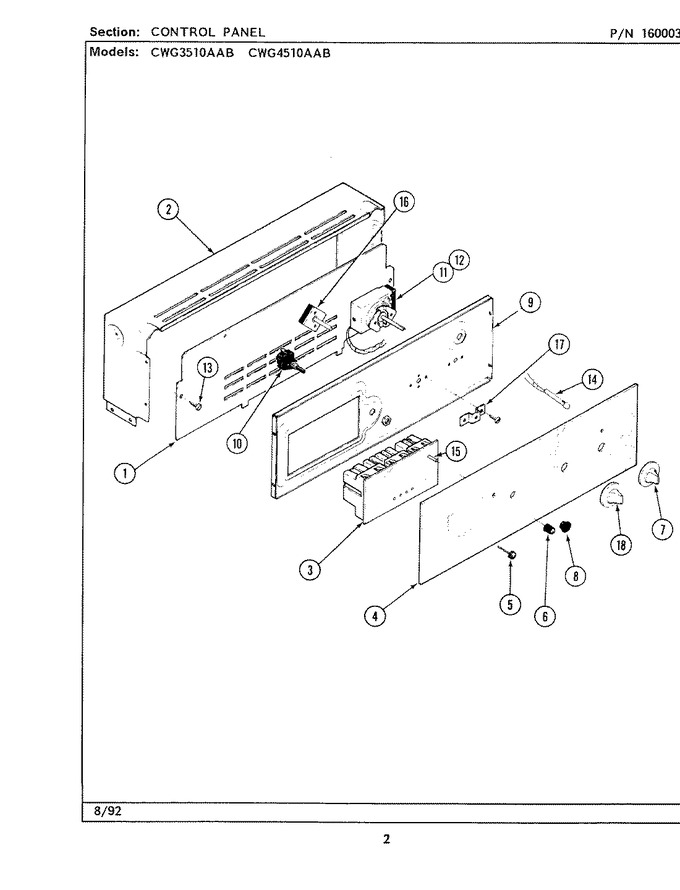

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F151-51 | Cover, Rear Wire | 13 |
|
- | ||||
| 2 | 4005F153-51 | Cover, Wire | 13 |
|
- | ||||
| 3 | 7601P130-60 | Clock | 13 |
|
- | ||||
| 4 | 7902P223-60 | Glass, Control | 13 |
|
- | ||||
| 5 | 7711P171-60 | Knob, Clock (button-blk) | 13 |
|
$ 19.90 | ||||
| 6 | 7711P172-60 | Knob, Clock (blk) | 13 |
|
$ 23.55 | ||||
| 7 | 7711P403-60 | Knob, Thermostat (gas) | 13 |
|
- | ||||
| 8 | 7214P007-60 | Sleeve, Switch (blk) | 13 |
|
- | ||||
| 9 | 3605F170-80 | Plate, Switch | 13 |
|
- | ||||
| 10 | 7403P109-60 | Switch, Push (blk) | 13 |
|
- | ||||
| 11 | 7404P059-60 | Thermostat | 13 |
|
- | ||||
| 12 | 7101P279-60 | Screw W/washer | 13 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 13 |
|
Immediately | $ 6.85 | |||
| 14 | 5700A242-60 | Signal Light | 13 |
|
- | ||||
| 15 | WP8312P015-60 | Shaft, Bit Generator (Replaces: 8312P015-60) | 13 |
|
$ 0.81 | ||||
| 16 | 7403P034-60 | Switch | 13 |
|
- | ||||
| 17 | 3807F328-45 | Support, Switch Shaft | 13 |
|
- | ||||
| 18 | 7711P402-60 | Knob, Selector Switch | 13 |
|
- |
