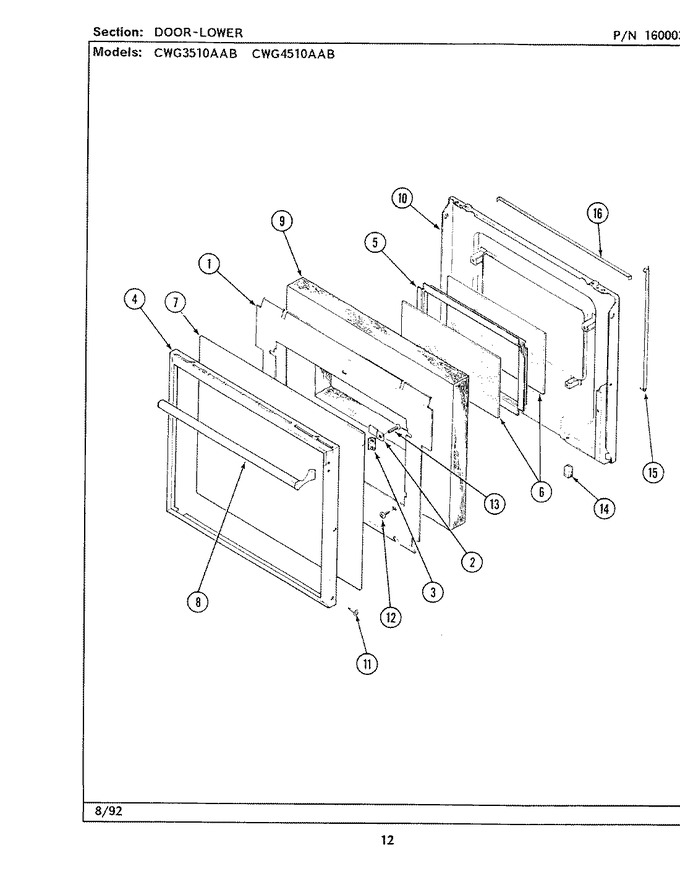

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F101-45		Baffle, Oven Burner	13	Appelez-nous	-
2	Y00000000		See Note	13	Appelez-nous	-
3	7112P017-60		Clip, Door Handle	13	Appelez-nous	-
4	7706P247-60		Frame, Door Lwr	13	Appelez-nous	-
5	3603F013-80		Frame, Window----na	13	Appelez-nous	-
6	7902P035-60		Glass, Door Inner	13	Appelez-nous	-
7	7902P263-60		Glass, Door Lower	13	Appelez-nous	-
8	7701P060-60		Handle, Door	13	Appelez-nous	-
9	7002P019-60		Insulation, Door Lower	13	Appelez-nous	-
10	2402W132-16		Lining Assy	13	Appelez-nous	-
11	WP7101P126-60		Screw, No.10-16ab   (Replaces: 7101P221-60)	13		Immediately	$ 6.85
12	WP7101P126-60		Screw   (Replaces: 7101P058-60)	13		Immediately	$ 6.85
13	7101P079-60		Screw	13	Appelez-nous	-
14	7208P001-60		Seal, Glass	13	Appelez-nous	-
15	7212P007-60		Seal, Door (vertical)	13			$ 47.10
16	WP7212P006-60		Seal, Door (horizontal)   (Replaces: 7212P006-60)	13			$ 105.81
