SELECT A DIAGRAM

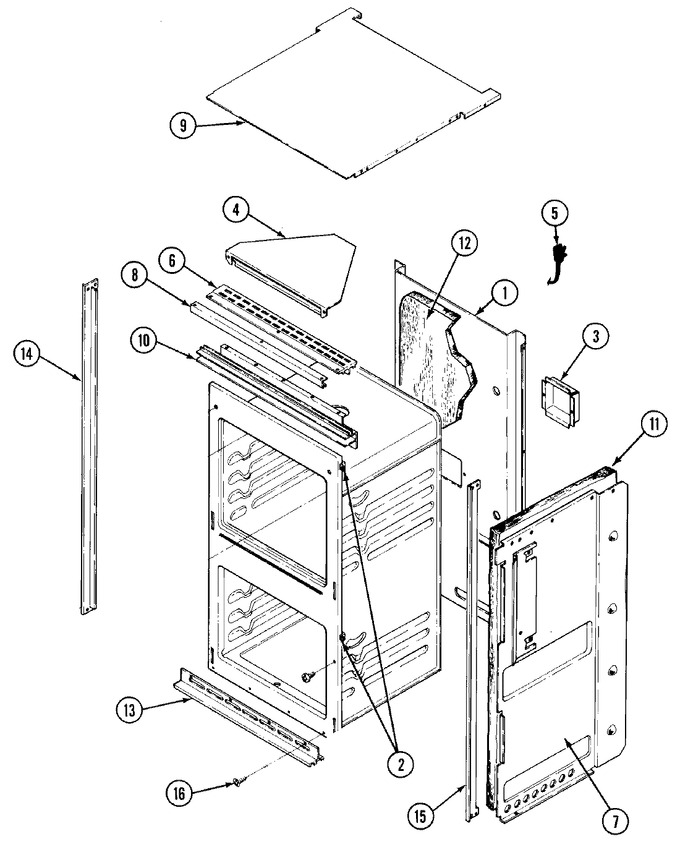

01 - Body


02 - Control Panel


03 - Door (lower)


04 - Door (upper)


05 - Gas Controls


06 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F041-51		Back, Main	10	Appelez-nous	-
2	7112P020-60		Clip, Oven Front	10	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	10		Immediately	$ 6.85
3	4005F088-80		Cover	10	Appelez-nous	-
4	4006W077-23		Box Assy, Flue	10	Appelez-nous	-
5	7402P014-60		Cord, Power	10	Appelez-nous	-
6	7706P199-60		Extrusion, Top (blk)	10	Appelez-nous	-
7	2618F088-51		Panel, Side Lf.	10	Appelez-nous	-
7	2618F089-51		Panel, Side Right	10	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P061-60)	10		Immediately	$ 6.85
8	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
8	7706P185-60		Extrusion, Top Front	10	Appelez-nous	-
9	W10204425		Cover Box Wall Oven   (Replaces: 4005F152-51)	10	Appelez-nous	-
10	7756P072-60		Extrusion Vent	10	Appelez-nous	-
10	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
11	7002P107-60		Insulation, Wrapper	10	Appelez-nous	-
12	7002P109-60		Insulation, Top & Rear	10	Appelez-nous	-
13	7706P153-60		Extrusion, Bottom (blk)	10	Appelez-nous	-
14	7750P033-60		Extrusion, Side-l	10	Appelez-nous	-
15	7750P034-60		Extrusion, Side-r	10	Appelez-nous	-
16	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	10		Immediately	$ 12.62
16	7103P040-60		Nut, Snap (wht)	10	Appelez-nous	-
16	7103P051-60		Nut, Snap	10	Appelez-nous	-
16	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
16	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89

    View Diagram in Separate Window       Print Part List
