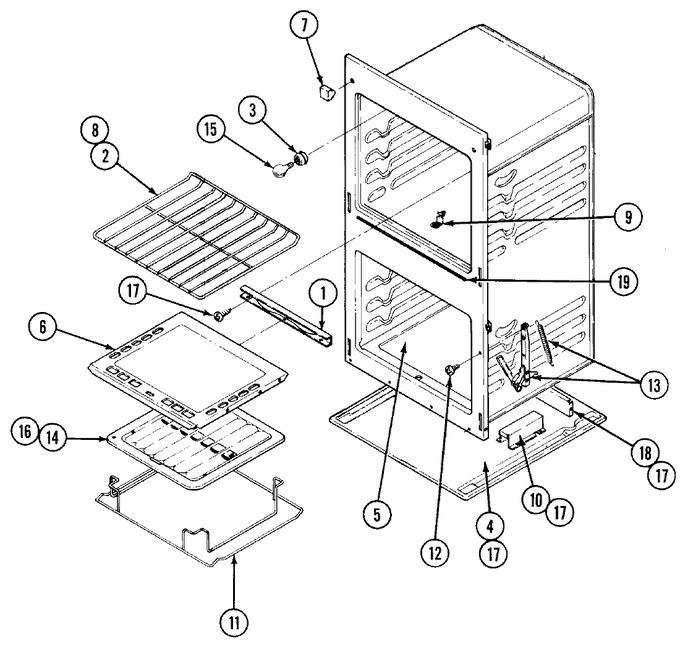

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door (lower)


04 - Door (upper)


05 - Gas Controls


06 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5720A011-23		Support, Oven Bottom	10	Appelez-nous	-
1	3807F029-80		Support	10	Appelez-nous	-
2	7801P005-60		Rack	10	Appelez-nous	-
3	7408P035-60		Receptacle, Oven Bulb	10			$ 30.71
4	4003F013-80		Base, Wall Oven	10	Appelez-nous	-
5	2205F005-16		Bottom, Oven	10	Appelez-nous	-
6	2205F008-16		Bottom, Oven	10	Appelez-nous	-
6	3601F109-45		Baffle	10	Appelez-nous	-
7	8003P009-60		Bumper, Door (square)	10	Appelez-nous	-
8	7801P007-60		Rack, Offset	10	Appelez-nous	-
9	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	10		Immediately	$ 11.07
10	4005F027-51		Cover, Fuse Box	10	Appelez-nous	-
11	7801P034-60		Oven Rack	10	Appelez-nous	-
12	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	10			$ 4.29
13	7106P042-60		Hinge, Door	10	Appelez-nous	-
13	7106P036-60		Hinge	10	Appelez-nous	-
14	Y3413F01619		Insert, Broil Pan	10	Appelez-nous	-
15	40A15		Bulb, Oven   (Replaces: 7407P095-60)	10		Immediately	$ 1.98
16	Y3401F02019		Pan, Broil	10	Appelez-nous	-
17	WP7101P126-60		Screw   (Replaces: 7101P061-60)	10		Immediately	$ 6.85
18	3807F139-80		Support	10	Appelez-nous	-
19	7212P014-60		Seal, Door (top)	10			$ 48.10

    View Diagram in Separate Window       Print Part List
