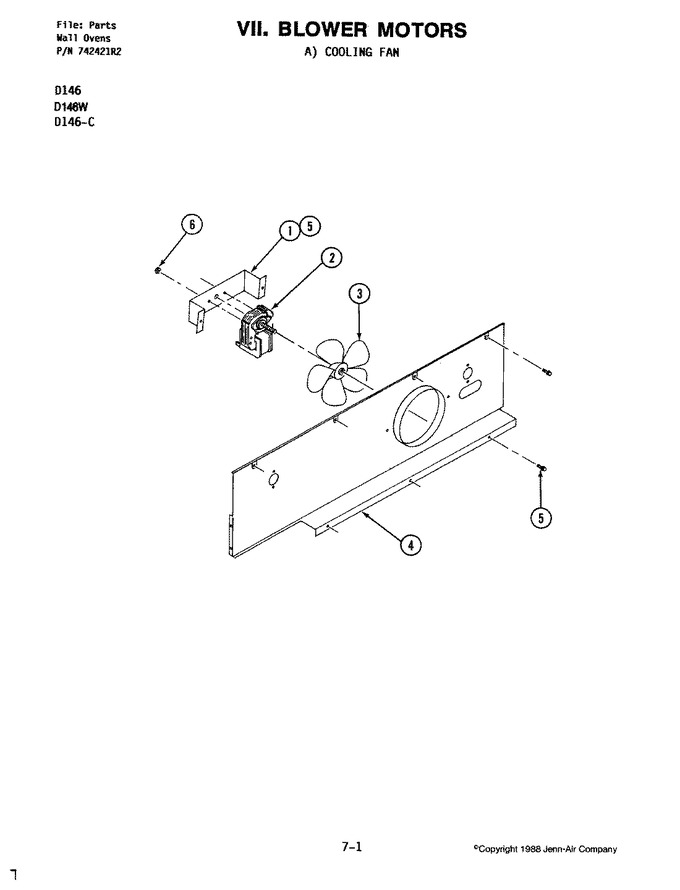

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y702542 | Bracket, Mounting Motor | 1 |
|
- | ||||
| 2 | Y702549 | Motor, Fan | 1 |
|
- | ||||
| 3 | Y702525 | Blade, Fan | 1 |
|
- | ||||
| 4 | Y702345 | Plate, Back | 1 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 6 | 703648 | Harness, Backsplash | 1 |
|
- | ||||
| 6 | M0282005 | Nut, Hex (Replaces: 701719) | 1 |
|
$ 7.07 |
