01 - Blower Motor


02 - Blower Motor


03 - Blower Motor (convection)


04 - Body (d146w)


05 - Internal Controls


06 - Oven


07 - Top

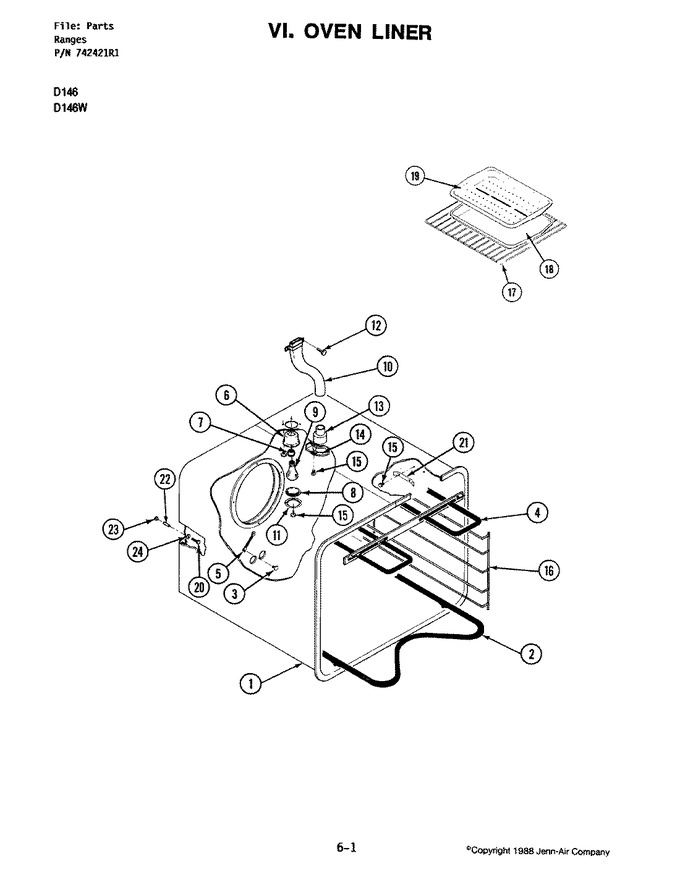

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712375		Liner	1	Appelez-nous	-
2	712247		Element, Bake (208v)	1	Appelez-nous	-
2	WPY04100019		Element, Bake (240v)   (Replaces: Y702550)	1			$ 116.29
3	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.16
4	712125		Element, Broil 208v	1	Appelez-nous	-
4	WPY04100015		Element, Broil 240v   (Replaces: Y702551)	1			$ 137.82
5	702643		Wire, Ground	1	Appelez-nous	-
6	704142		Receptacle, Holder	1	Appelez-nous	-
7	Y704145		Receptacle, Snap-in	1	Appelez-nous	-
8	Y704143		Lens, Light	1	Appelez-nous	-
9	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 16.80
10	702290		Tube, Vent	1	Appelez-nous	-
11	Y704144		Retainer, Lens	1	Appelez-nous	-
12	WP90767		Screw   (Replaces: Y700502)	1		Immediately	$ 7.04
13	701738		Tube, Vent	1	Appelez-nous	-
14	Y702632		Shield, Vent	1	Appelez-nous	-
15	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.47
16	702701		Support, Rack	1	Appelez-nous	-
17	Y702339		Rack, Oven	1	Appelez-nous	-
18	4396923		Pan, Broil   (Replaces: 703164)	1		Immediately	$ 52.04
19	4396923		Insert, Broil Pan   (Replaces: 703165)	1		Immediately	$ 52.04
20	701744		Screw	1	Appelez-nous	-
21	Y701541		Clip, Bulb	1	Appelez-nous	-
22	701741		Spacer, Oven	1	Appelez-nous	-
23	715294		Nut, Tee	1	Appelez-nous	-
23	702283		Insulation-back	1	Appelez-nous	-
23	702282		Insulation-sides,top,bottom	1	Appelez-nous	-
24	701736		Washer	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
