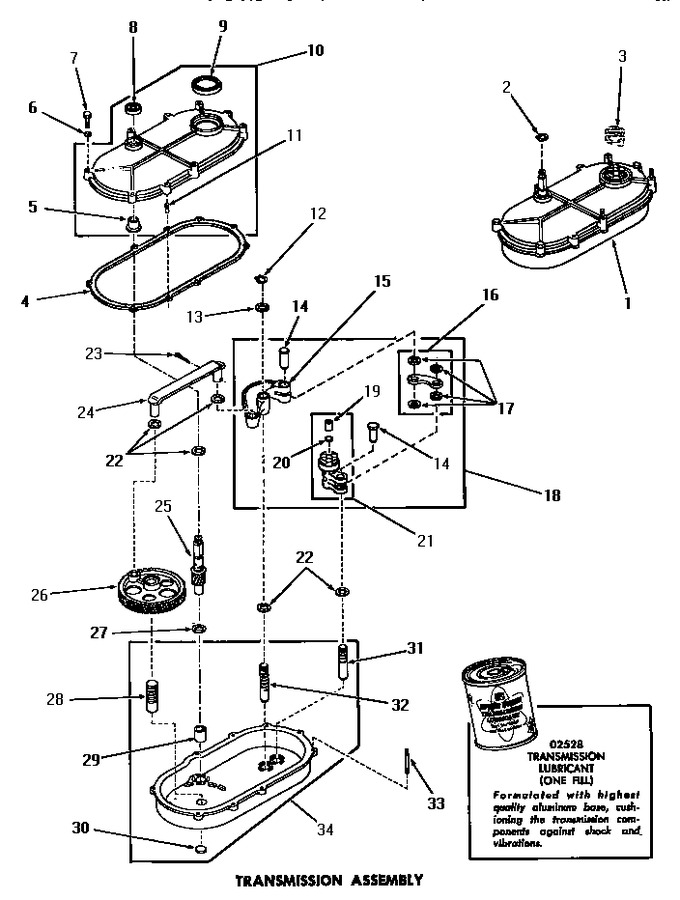

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23828		Assy,transmission		Appelez-nous	-
2	23751		Ring,retaining		Appelez-nous	-
3	Y00000000		See Note Shift Clutch		Appelez-nous	-
4	20059		Gasket				$ 6.99
5	FB-RFB200		Bearing				$ 784.86
6	03189		Lockwasher,1/4 Std-c P		Appelez-nous	-
7	20257		Screw,1/4-20 X 1-1/4 H		Appelez-nous	-
8	20200		Seal		Appelez-nous	-
9	20199		Seal				$ 8.04
10	20216		Assy,transmission Cove		Appelez-nous	-
11	20197		Dowel Pin		Appelez-nous	-
12	23751		Ring,retaining		Appelez-nous	-
13	20212		Washer,.626idx1.00odx.		Appelez-nous	-
14	01690		Pin,link		Appelez-nous	-
15	05005		Assy,rocker Arm		Appelez-nous	-
16	Y04999		Link		Appelez-nous	-
17	20212		Washer,.626idx1.00odx.		Appelez-nous	-
18	20220		Assy,rocker Arm		Appelez-nous	-
19	01711		Bearing		Appelez-nous	-
20	Y02479		Disc,expansion		Appelez-nous	-
21	20219		Drive Clutch Assembly		Appelez-nous	-
22	01791		Washer,.626 X 1.125 X1		Appelez-nous	-
23	02578		Pin,cotter		Appelez-nous	-
24	03969		Rod,connecting		Appelez-nous	-
25	23645		Pinion		Appelez-nous	-
26	02175		Gear,crank		Appelez-nous	-
27	20198		Washer,.626idx1.250odx		Appelez-nous	-
28	03477		Pin		Appelez-nous	-
29	01993		Bearing,7/8odx5/8id				$ 3.85
30	Y02769		Disc		Appelez-nous	-
31	01688		Pin		Appelez-nous	-
32	24817		Pin,rocker Arm		Appelez-nous	-
33	20155		Stud,double End 1/4-20		Appelez-nous	-
34	23927		Assy,transmission Xreplace		Appelez-nous	-
NI	02528		Transmission Lubricant		Appelez-nous	-
