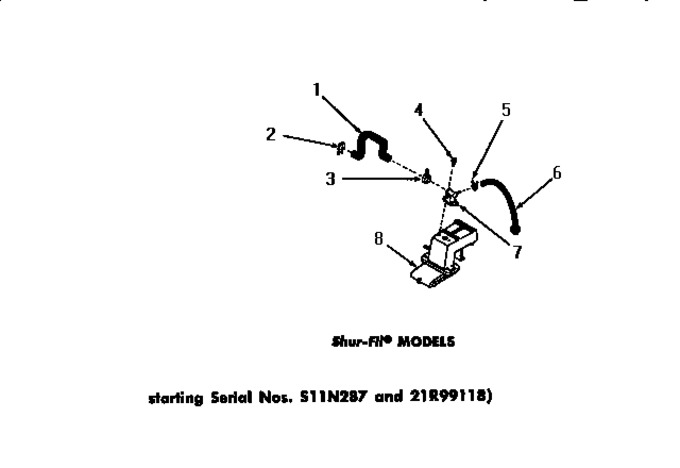

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25821		Hose,filler		Appelez-nous	-
2	80479		Hose Clamp		Appelez-nous	-
3	WP596669		Hose Clamp   (Replaces: 25988)			Immediately	$ 7.56
4	WP489464		Hex Head Screw   (Replaces: 23628)			Immediately	$ 7.05
5	WP596669		Hose Clamp   (Replaces: Y22294)			Immediately	$ 7.56
6	24439		Hose		Appelez-nous	-
7	25952		Tee,inlet		Appelez-nous	-
8	25956		Inlet,water		Appelez-nous	-
	NOTE:		If Drain Must Be Shortened, Cut Hose Between Molded End And Molded Elbow. Useone 25863 Hose Coupling To Splice Hose.		Appelez-nous	-
