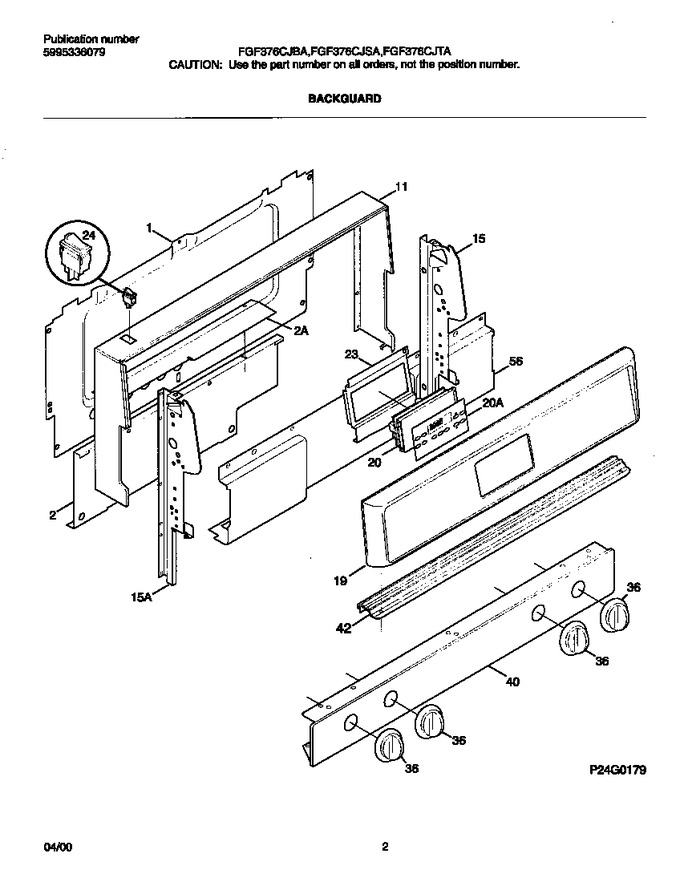

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303288505		655f Shield-rear Wall B/g,1		Appelez-nous	-
2	316053800		Shield-backguard, Inner Top		Appelez-nous	-
11	316061856		Trim-wrapper,textured ,black		Appelez-nous	-
11	316083718		Trim-wrapper,black		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
19	316100582		Panel-bg G Beta Fr Blk Cm,19		Appelez-nous	-
20	316080011		Clock/timer, Slew		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
24	5304527841		Switch-rocker, Black   (Replaces: 316118100)			Immediately	$ 11.38
36	316109502		Knob-top Valve,black		Appelez-nous	-
40	316009268		Panel-manifold,black		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
*19600	316001475		Harness-bkgd G Sc Eoc Cm		Appelez-nous	-
*19601	316002180		Diagram-wiring		Appelez-nous	-
*19602	316105837		Install Inst S/b 2+1+1		Appelez-nous	-
*19603	316128207		Owner`s Guide		Appelez-nous	-
*19604	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*19605	316519700		Screw,cup Pt ,8-18 X 0.375 ,hinge ,ind Lght Brkt,manifol   (Replaces: 316021108)				$ 10.02
*19606	316021109		Screw,semi Gim ,8-18 X 1/2 ,black   (Replaces: 316021110)			Immediately	$ 27.50
*19607	316112500		Template, Anti-tip Bracket				$ 3.55
*19609	316089307		Overlay-clock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
