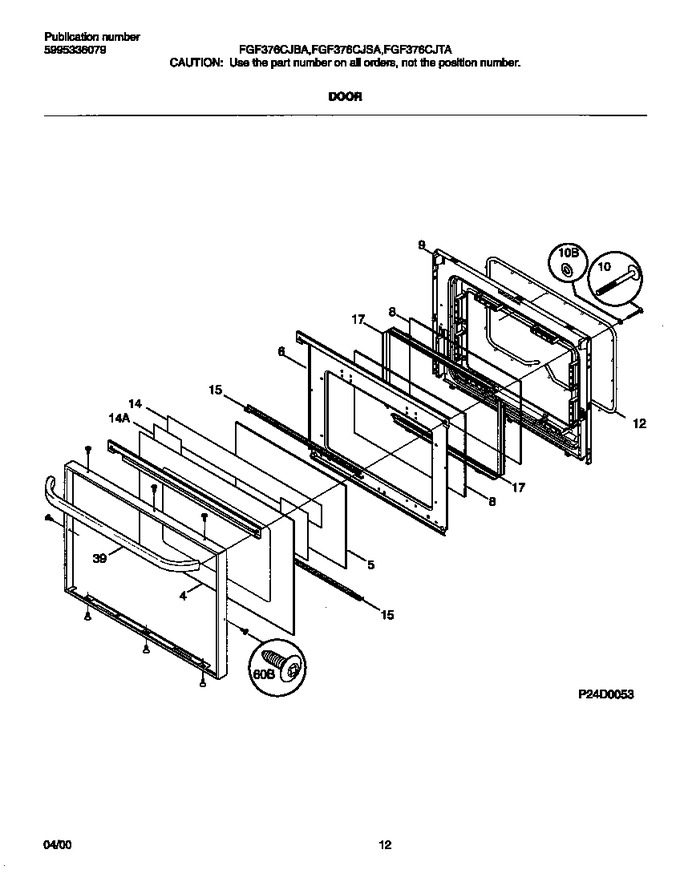

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim,oven Door ,black		Appelez-nous	-
4	316089012		Glass-front Door Black,4		Appelez-nous	-
5	316117601		Glass-door Airwash Lg Vis 4mm,5		Appelez-nous	-
6	316091404		Shield-wool		Appelez-nous	-
8	5304503232		Glass-oven Door, Inner , (2)   (Replaces: 316117500)				$ 116.95
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
15	316081405		Bracket-glass, (2)		Appelez-nous	-
17	316117701		Spacer-glass,(2)				$ 53.66
29	316132100		Spacer-sponge Pad,29		Appelez-nous	-
39	316091117		Handle-door, Black, Oven		Appelez-nous	-
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
55	316008401		Washer,3/4 X 1/4 ,steel				$ 11.34
217	316065306		Plate Warning/caution		Appelez-nous	-
*19630	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*19631	316021109		Screw,semi Gim ,8-18 X 1/2 ,black   (Replaces: 316021110)			Immediately	$ 27.50
*19633	5303271648		Burner Box, Wafer Hd Sq Dr , 8-18ab X 1/2			Immediately	$ 13.46
*19634	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
14A	316102204		Foil-aluminum Black Backing,14		Appelez-nous	-
14B	316574601		Foil-aluminum Black Backing,14a   (Replaces: 316102205)				$ 2.98
