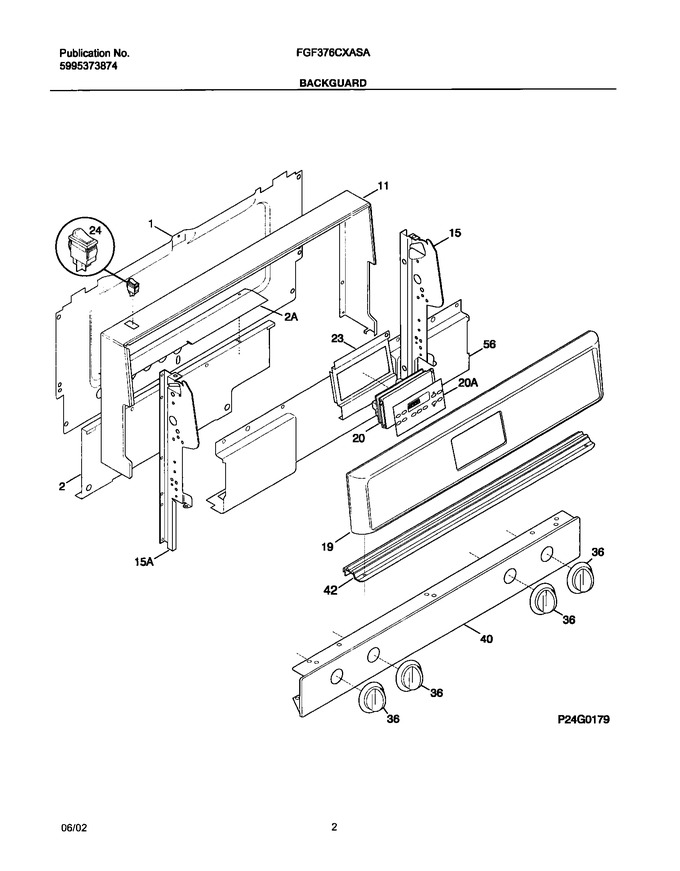

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028700		Shield-backguard,galv ,rear Wall		Appelez-nous	-
2	316051600		Shield,backguard ,inner		Appelez-nous	-
11	316083722		Trim-wrapper,white ,textured,w/hole		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100581		Panel-backguard,white		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
36	316109513		Knob-top Valve,white				$ 47.25
40	316009285		Panel-manifold,white		Appelez-nous	-
42	316055201		Trim-vent,chrome		Appelez-nous	-
56	316074907		Deflector-flue, Black		Appelez-nous	-
15A	316023109		Support,backguard ,lh		Appelez-nous	-
20A	316089306		Overlay-clock				$ 106.63
2A	316053800		Shield-backguard, Inner Top		Appelez-nous	-
F20	316080011		Clock/timer, Slew		Appelez-nous	-
F24	5304527842		Switch,oven Light ,white ,rocker   (Replaces: 316118101)			Immediately	$ 16.13
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001475		Wiring Harness ,backguard		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
