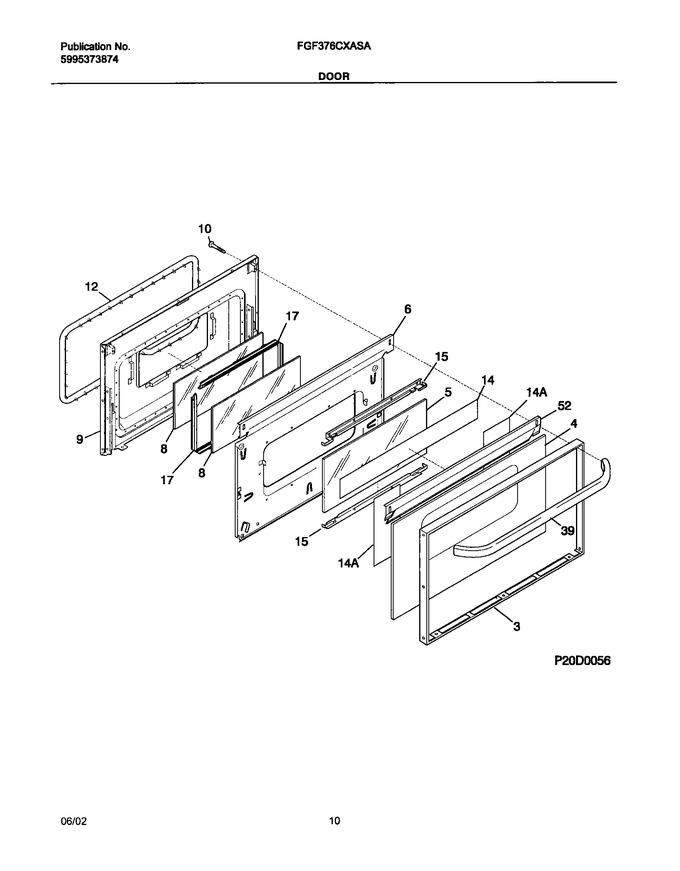

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316089013		Glass-oven Door,white ,outer				$ 256.52
5	316117601		Glass,door ,4mm ,airwash		Appelez-nous	-
6	316091404		Shield-wool		Appelez-nous	-
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316066619		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw,wafer Hd Sq Dr ,10-24t X 2.00 ,handle Mtg				$ 16.96
14	316102203		Foil,aluminum		Appelez-nous	-
15	316081405		Bracket-glass, (2)		Appelez-nous	-
17	316117701		Spacer,door Glass ,(2)				$ 53.66
39	5304530039		Handle,oven Door ,white   (Replaces: 316248301)			Immediately	$ 167.43
52	316081301		Shield-oven Door, White, Top				$ 85.94
14A	316102202		Foil,4`` X 5.5`` ,aluminum ,clear ,(2)				$ 8.74
F12	5303131601		Seal-oven Door				$ 374.63
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	316065306		Plate Warning/caution		Appelez-nous	-
NI	3203618		Rivet,pop		Appelez-nous	-
NI	316132100		Spacer,sponge Pad		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
